Product Summary
The A42MX09-PL84 offer a cost-effective design solution at 5V. The MX devices are single-chip solutions and provide high performance while shortening the system design and development cycle.MX devices can integrate and consolidate logic implemented in multiple PALs, CPLDs, and FPGAs. Example applications include high-speed controllers and address decoding, peripheral bus interfaces, DSP, and co-processor functions. The A42MX09-PL84 also feature MultiPlex I/Os, which support mixed-voltage systems, enable programmable PCI, deliver high-performance operation at both 5.0V and 3.3V, and provide a low-power mode.
Parametrics
A42MX09-PL84 absolute maximum ratings: (1)DC Supply Voltage for I/Os: –0.5 to +7.0V; (2)DC Supply Voltage for Array: –0.5 to +7.0V; (3)Input Voltage: –0.5 to VCCI+0.5V; (4)Output Voltage: –0.5 to VCCI+0.5V; (5)Storage Temperature: –65 to +150V.
Features
A42MX09-PL84 features: (1)High Capacity: Single-Chip ASIC Alternative; (2)High Performance: 250 MHz Performance; (3)HiRel Features: Commercial, Industrial, Automotive, and Military Temperature Plastic Packages; (4)Ease of Integration: Up to 100% Resource Utilization and 100% Pin Locking.

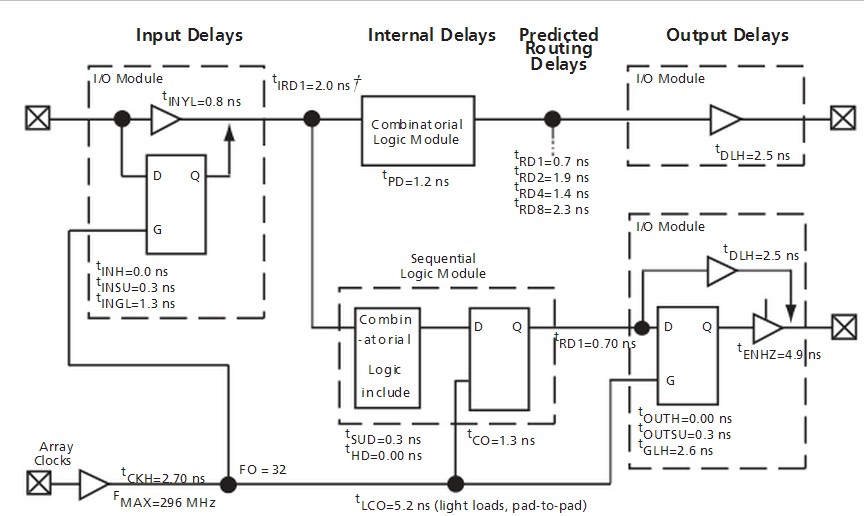

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 A42MX09-PL84 |
|
IC FPGA MX SGL CHIP 14K 84-PLCC |
Data Sheet |
|
|
||||||
|
A42MX09-PL84A |
|
IC FPGA MX SGL CHIP 14K 84-PLCC |
Data Sheet |
|
|
||||||
|
A42MX09-PL84M |
|
IC FPGA MX SGL CHIP 14K 84-PLCC |
Data Sheet |
|
|
||||||
|
A42MX09-PL84I |
|
IC FPGA MX SGL CHIP 14K 84-PLCC |
Data Sheet |
|
|
||||||
