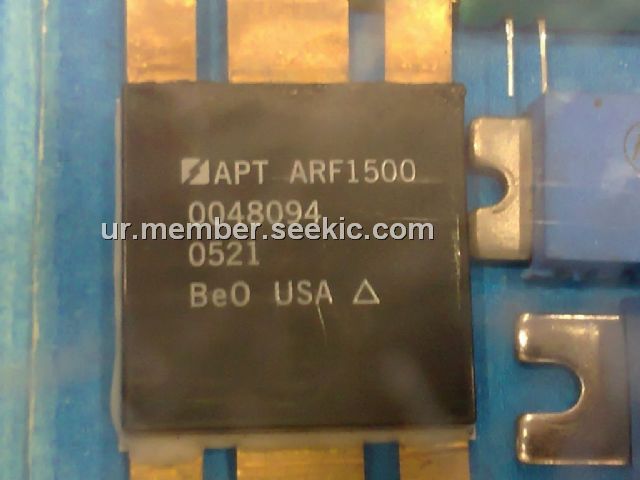

Product Summary

The ARF1500 is a RF power transistor designed for very high power scientific, commericial, medical and industrial RF power generator and amplifier applications up to 40MHz.

Parametrics

ARF1500 absolute mximum ratings: (1)VDS, drain-source voltage: 500 Volts; (2)VDGO, drain-gate votlage: 500 Volts; (3)ID, continuous drain current @ Tc=25℃: 60 Amps; (4)VGS, gate source voltage: ±30 Volts; (5)PD, total device dissipation @ Tc=25℃: 1500 Watts; (6)Tj, Tstg, operating and storage junction temeprature range: -55 to 200℃; (7)TL, lead temeprature: 300℃.

Features

ARF1500 features: (1)high performance power RF package; (2)very high breakdown for improved ruggedness; (3)low thermal resistance; (4)nitride passivated die for improved reliability.

Diagrams

ARF1500 circuit
