Product Summary

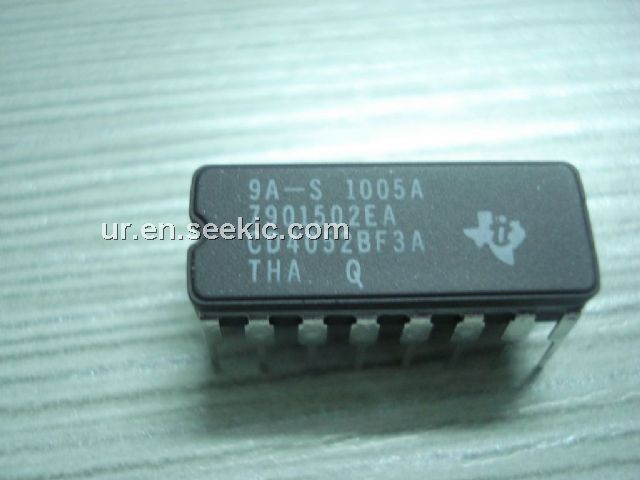

The CD4052BF3A is a CMOS analog multiplexer with logic level conversion. Its applications include Analog and Digital Multiplexing and Demultiplexing, A/D and D/A Conversion, Signal Gating.
Parametrics
CD4052BF3A absolute maximum ratings: (1)supply voltage: -0.5 to 20V; (2)DC input voltage range: -0.5 to VDD+0.5V; (3)DC input current: ±10mA.
Features
CD4052BF3A features: (1)Low ON Resistance; (Typ) Over 15VP-P Signal Input Range for VDD-VEE = 18V; (2)High OFF Resistance, Channel Leakage of ±100pA (Typ) at VDD-VEE = 18V; (2)Logic-Level Conversion for Digital Addressing Signals of 3V to 20V (VDD-VSS = 3V to 20V) to Switch Analog Signals to 20VP-P (VDD-VEE = 20V); (3)Matched Switch Characteristics, rON = 5; (Typ) for VDD-VEE = 15V.
Diagrams
