Product Summary

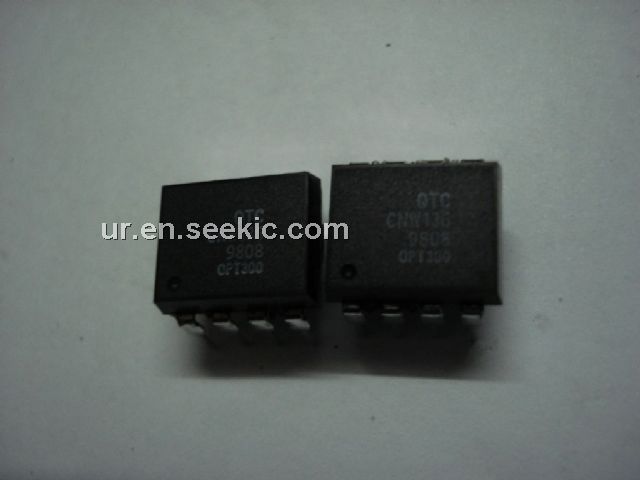

The CNW136 is fast-switching optocouplers, consisting of an AlGaAs LED optically coupled to a high speed photodetector transistor in a wide 8-pin dual-in-line (DIL) plastic envelope. The CNW136 provides the same electrical switching and isolation performances as the CNW4502, and increased ESD protection due to a non-connected base.
Parametrics
CNW136 absolute maximum ratings: (1)Continuous Reverse Voltage (DC): 5V; (2)Operating Temperature:-55 to +85°C; (3)Storage Temperature:-55 to +150°C; (4)Total Power Dissipation up to 70°C Ambient: 250 mW; (5)Continuous Forward Current: 100 mA; (6)Supply Voltage: 0.5 to 30 V; (7)Emitter to Base Voltage: 5V.
Features
CNW136 features: (1)Wide body DIL encapsulation, with a pin distance of 10.16 mm; (2)Minimum clearance of 9.6 mm and minimum creepage of 10 mm; (3)11 MHz bandwidth; (4)Short propagation delay times; (5)TTL compatible; (6)Low saturation voltage; (7)High transient immunity; (8)Maximum permissible voltage of 8000 V (peak) and maximum; (9)operating isolation voltage of 1000 V (RMS) in accordance with VDE 00884.

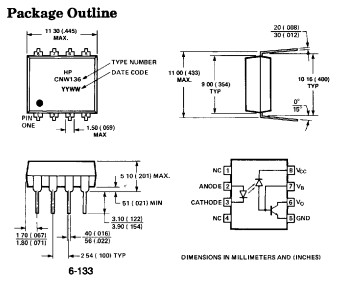

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CNW136300 |
Fairchild Semiconductor |
High Speed Optocouplers |
Data Sheet |
Negotiable |
|
||||
|
CNW136S |
Fairchild Semiconductor |
High Speed Optocouplers |
Data Sheet |
Negotiable |
|
||||
|
CNW136 |
Fairchild Semiconductor |
High Speed Optocouplers DIP8 HISPEED OPTCPLR |
Data Sheet |
Negotiable |
|
||||
