Product Summary

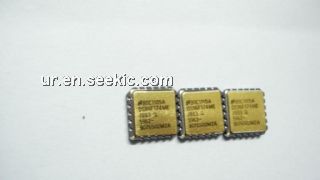

The DS96F174ME is a quad differential driver. It is designed to meet EIA485 standards. The DS96F174ME offers improved performance due to the use of L-FAST bipolar technology. The use of LFAST technology allows the DS96F174ME to operate at higher speeds while minimizing power consumption. The DS96F174ME has TRI-STATE outputs and is optimized for balanced multipoint data bus transmission at rates up to 15Mbps.

Parametrics

DS96F174ME absolute maximum ratings: (1)storage temperature range: -65 to 175℃; (2)lead temperature: 300℃; (3)maximum package power dissipation, LCCC package: 2000mW; (4)CDIP package: 1800mW; (5)ceramic flatpack package: 1000mW; (6)supply voltage: 7V; (7)enable input voltage: 5.5V.

Features

DS96F174ME features: (1)monotonic differential output switching; (2)TRI-STATE outputs; (3)TRI-STATE outputs; (4)designed for multipoint bus transmission; (5)common mode output voltage range: -7 to 12V; (6)operates from single 5V supply; (7)thermal shutdown protection.

Diagrams

DS96F174ME block diagram
