Product Summary

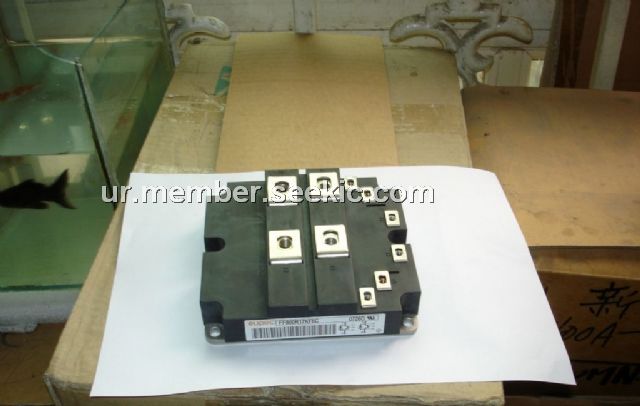

The FF600R17KF6C is a kind of IGBT-module.

Parametrics

FF600R17KF6C absolute maximum ratings: (1)Collector-emitter voltage: 1700V; (2)DC- collector current: TC=80℃, Tvj=150℃, 1200A; TC=25℃, Tvj=150℃, 1700A; (3)Repective peak collector current: 2400A; (4)Total power dissipation: 660kW; (5)Gate-emitter peak volatge: ±20V.

Features

FF600R17KF6C characteristics: (1)Forward volatge: 1,90V; (2)Peak reverse recovery current: 1150, 1250A; (3)Recovered charge: 305, 510μC; (4)Reverse recovery energy: 190, 340mJ; (5)Thermal resistance, junction to case: 42,0K/kW; (6)Thermal resistance, canse to heatsink: 52,0K/kW.

Diagrams

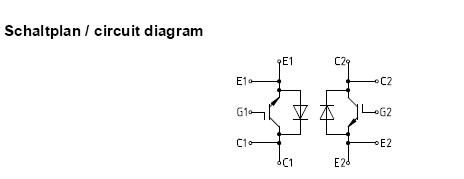

FF600R17KF6C circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FF600R17KF6C_B2
FF600R17KF6C_B2

Infineon Technologies

IGBT Modules N-CH 1.7KV 975A

Data Sheet

0-2: $816.95
2-3: $745.06
3-5: $663.37
5-10: $620.88
FF600R17KF6C_B4
FF600R17KF6C_B4

Infineon Technologies

IGBT Modules

Data Sheet

0-2: $757.80
2-10: $683.40
FF600R17KF6C-B2
FF600R17KF6C-B2

Infineon Technologies

IGBT Modules 1700V 600A DUAL

Data Sheet

0-2: $745.80
2-3: $694.20
3-5: $620.40
5-10: $580.80
