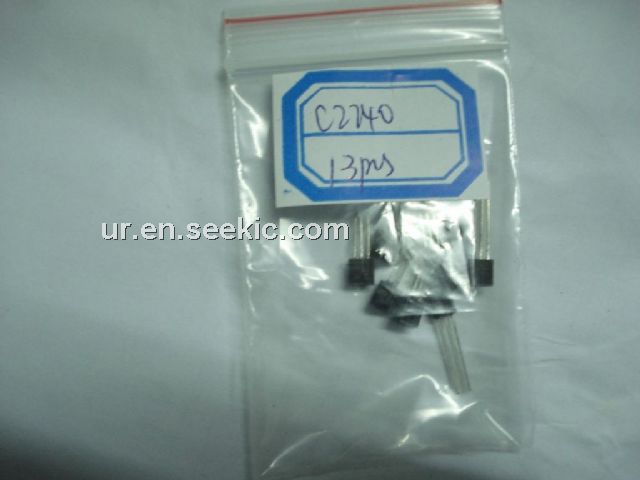

2SC2240

2SC2240, transistor, low noise, 5 V, 120 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.20~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	0.20 / Piece

PartNumber:: 2SC2240

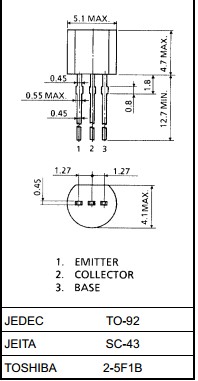

Brand:: Toshiba Semiconductor - Toshiba | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. qi's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-16

From Other Seller

Part Number:2SC2240
US $0.20 - 0.20
Quantity:

piece

Product Summary

The 2SC2240 is a transistor for low frequency and low noise applications. This device is designed to lower noise figure in the region of low signal source impedance, and to lower the pulse noise. This is recommended for the first stages of Equalizer amplifiers.

Parametrics

2SC2240 absolute maximum ratings:(1)Collector-base voltage: 120 V; (2)Collector-emitter voltage : 120 V; (3)Emitter-base voltage: 5 V ; (4)Collector current: 100 mA ; (5)Base current: 20 mA; (6)Collector power dissipation: 300 mW; (7)Junction temperature: 125°C; (8)Storage temperature range: -55~125°C.

Features

2SC2240 features: (1)Low noise : NF = 4dB (typ.) RG = 100Ω, VCE = 6 V, IC = 100μA, f = 1 kHz; (2)Low pulse noise: Low 1/f noise ; (3)High DC current gain: hFE = 200~700 ; (4)High breakdown voltage: VCEO = 120 V.
