Product Summary

The AD678KN is a complete sampling ADC. It is a complete, multipurpose 12-bit monolithic analog-to-digital converter, consisting of a sample-hold amplifier (SHA), a microprocessor compatible bus interface, a voltage reference and clock generation circuitry. The AD678KN offers a choice of digital interface formats; the 12 data bits can be accessed by a 16-bit bus in a single read operation or by an 8-bit bus in two read operations (8+4), with right or left justification.

Parametrics

AD678KN absolute maximum ratings: (1)vcc: 18V; (2)VEE: 0.3V; (3)VCC: 26.4V; (4)VDD: 7V; (5)Digital outputs: -0.5 to VDD+0.3V; (6)Junction temperature: 175℃; (7)storage temperature: -65 to 150℃.

Features

AD678KN features: (1)AC and DC Characterized and Specified (K, B and T Grades); (2)200k Conversions per Second; (3)1 MHz Full Power Bandwidth; (4)500 kHz Full Linear Bandwidth; (5)72 dB S/N+D (K, B, T Grades); (6)Twos Complement Data Format (Bipolar Mode); (7)Straight Binary Data Format (Unipolar Mode); (8)10 M Input Impedance; (9)8-Bit or 16-Bit Bus Interface; (10)On-Board Reference and Clock; (11)10 V Unipolar or Bipolar Input Range.

Diagrams

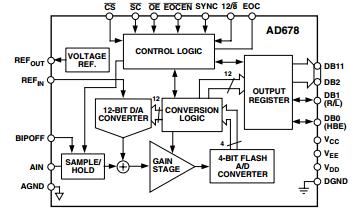

AD678KN block diagram

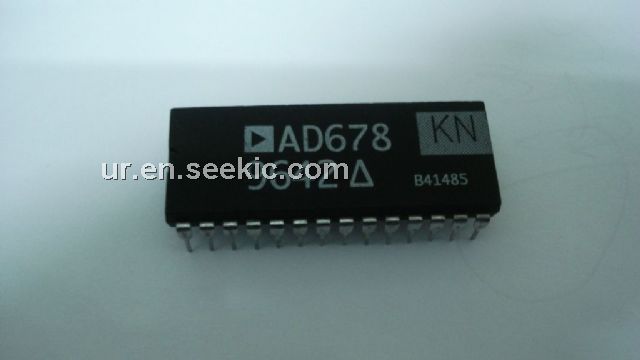

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD678KNZ
AD678KNZ

IC ADC 12BIT SAMPLING 28DIP
Data Sheet
0-4: $43.40
AD678KN
AD678KN
Analog Devices Inc
IC ADC 12BIT SAMPLING 28-DIP
Data Sheet
1-4: $45.01
