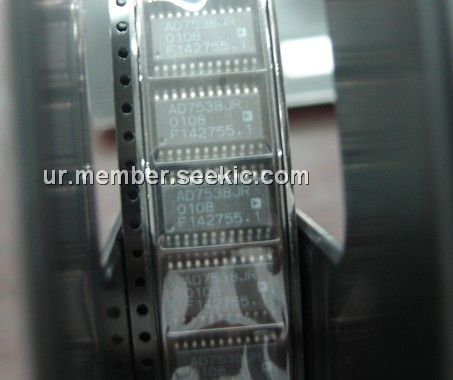

Product Summary

The AD7538JR is a 14-bit monolithic CMOS D/A converter which uses laser trimmed thin-film resistors to achieve excellent linearity. The AD7538JR is loaded by a single 14-bit wide word using standard Chip Select and Memory Write Logic. A novel low leakage configuration (U.S. Patent No. 4,590,456) enables the AD7538JR to exhibit excellent output leakage current characteristics over the specified temperature range.

Parametrics

AD7538JR absolute maximum ratings: (1)VDD (Pin 23) to DGND:–0.3 V, +17 V; (2)VSS (Pin 24) to AGND:–15 V, +0.3 V; (3)VREF (Pin 1) to AGND:±25 V; (4)VRFB (Pin 2) to AGND:±25 V; (5)Digital Input Voltage (Pins 6–22) to DGND:–0.3 V, VDD +0.3 V; (6)VPIN3 to DGND:–0.3 V, VDD +0.3 V; (7)AGND to DGND:–0.3 V, VDD +0.3 V; (8)Power Dissipation (Any Package): To +75℃:1000 mW, Derates Above +75℃:10 mW/℃; (9)Operating Temperature Range:0℃ to +70℃; (10)Storage Temperature:–65℃ to +150℃; (11)Lead Temperature (Soldering, 10 sec):+300℃.

Features

AD7538JR features: (1)All Grades 14-Bit Monotonic Over the Full Temperature Range; (2)Low Cost 14-Bit Upgrade for 12-Bit Systems; (3)14-Bit Parallel Load with Double Buffered Inputs; (4)Small 24-Pin, 0.30 DIP and SOIC; (5)Low Output Leakage (<20 nA) Over the Full Temperature Range.

Diagrams

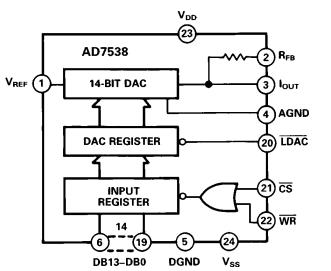

AD7538JR block diagram
