Product Summary

The PS21267-P is a Dual-In-Line Package Intelligent Power Module. It is suitable for AC100V~200V three-phase inverter drive for small power motor control.

Parametrics

PS21267-P absolute maximum ratings: (1)VCC, supply voltage: 450V; (2)VCC(surge), supply voltage (surge): 500V; (3)VCES, collector-emitter voltage: 600V; (4)±IC, each IGBT collector current: 30A; (5)±ICP, each IGBT collector curent (peak): 60A; (6)PC, collector dissipation: 55.5W; (7)Tj, junction temperature: -20 to 125℃.

Features

PS21267-P features: (1)For upper-leg IGBTS :Drive circuit, High voltage high-speed level shifting, Control supply under-voltage (UV) protection; (2)For lower-leg IGBTS: Drive circuit, Control supply under voltage protection (UV), Short circuit protection (SC); (3)Fault signaling: Corresponding to an SC fault (Lower-side IGBT) or a UV fault (Lower-side supply); (4)Input interface : 3, 5V line compatible. (High Active); (5)UL Approved : Yellow Card No. E80276.

Diagrams

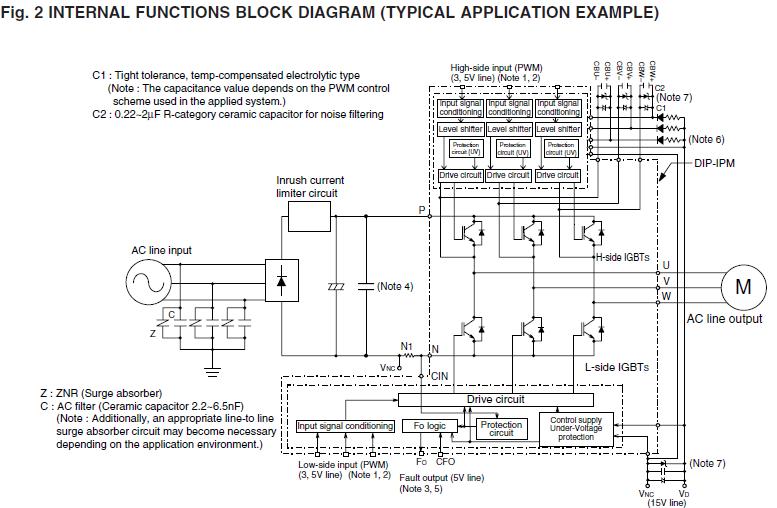

 PS21267-P functional block diagram
