Product Summary
The AD9380KSTZ-100 is a dual-display interface. Its applications include advanced TVs, HDTV, Projectors, LCD monitor. The AD9380KSTZ-100 offers designers the flexibility of an analog interface and high definition multimedia interface (HDMI) receiver integrated on a single chip. Also included is support for high bandwidth digital content protection (HDCP). The analog interface includes a 150 MHz triple ADC with internal 1.25 V reference, a phase-locked loop (PLL), and programmable gain, offset, and clamp control.
Parametrics
AD9380KSTZ-100 absolute maximum ratings: (1)VD: 3.6V; (2)VDD: 3.6V; (3)DVDD: 1.98V; (4)PVDD: 1.98V; (5)Analog inputs: VD to 0V; (6)Digital output current: 20mA; (7)operating temperature range: -25 to 85℃; (8)maximum junction temperature: 150℃; (9)maximum case temperature: 150℃.
Features

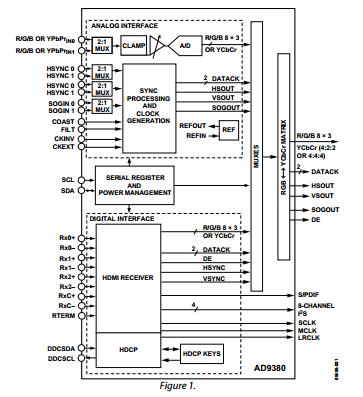

AD9380KSTZ-100 features: (1)analogy/HDMI dual interface; (2)analog interface; (3)digital video interface; (4)digital audio interface.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|

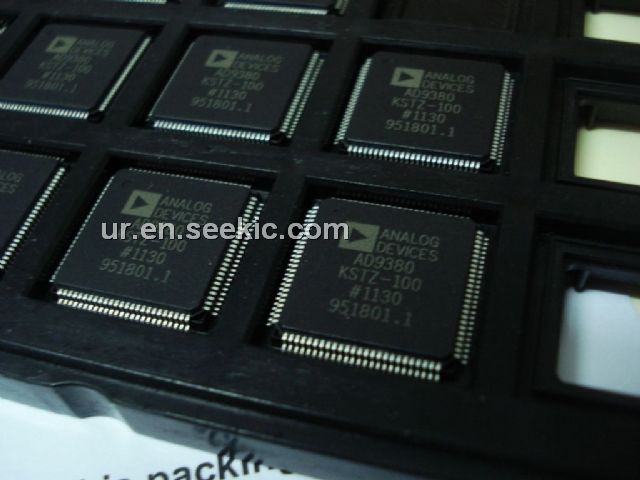

AD9380KSTZ-100 |
Analog Devices Inc. |
IC INTERFACE 100MHZ HDMI 100LQFP |
Data Sheet |
Negotiable |
|
|||||||
