Product Summary

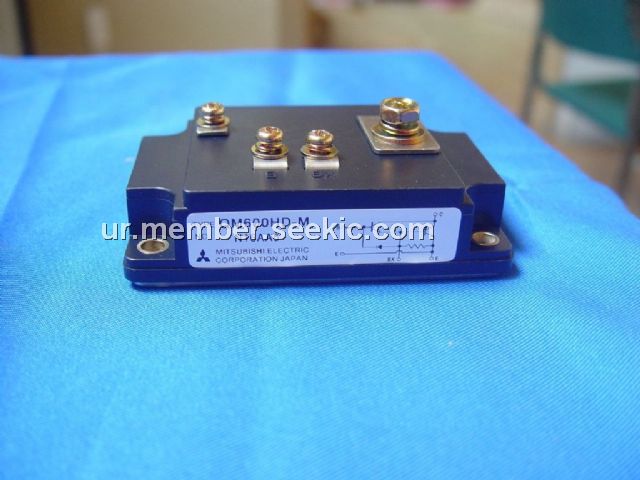

The QM600HD-M is a high power switching of non insulated type. It is belongs to MITSUBISHI transistor modules. With collector current of 600A, collector emitter voltage of 350V, DC current gain 500, this module is has a widely application in robotics, forklifts, welders and so on. For the detail information, please download the datasheet in our platform.
Parametrics
Absolute maximum ratings:(1)Collector－emitter voltage, VCEX (SUS), IC=1A, VEB=2V: 350; (2)Collector－emitter voltage, VCEX, VEB=2V:350; (3)Collector－base voltage, VCBO, Emitter open:400; (4)Emitter－base voltage,VEBO, Collector open:10; (5)Collector current, IC, DC:600; (6)Collector reverse current, －IC,TC=25°C:－; (7)Collector dissipation, PC, DC (forward diode current):2080; (8)Base current, IB,DC :15; (9)Surge collector reverse current(forward diode current), －ICSM, Peak value of one cycle of 60Hz (half wave):－; (10)Junction temperature, Tj:–40 to +150; (11)Storage temperature, Tstg:–40 to +125; (12)Isolation voltage, Viso, Charged part to case, AC for 1 minute:－.
Features
Features:(1)Collector current, IC: 600A; (2)Collector-emitter voltage, VCEX: 350V; (3)DC current gain, hFE: 500; (4)Non-Insulated Type.

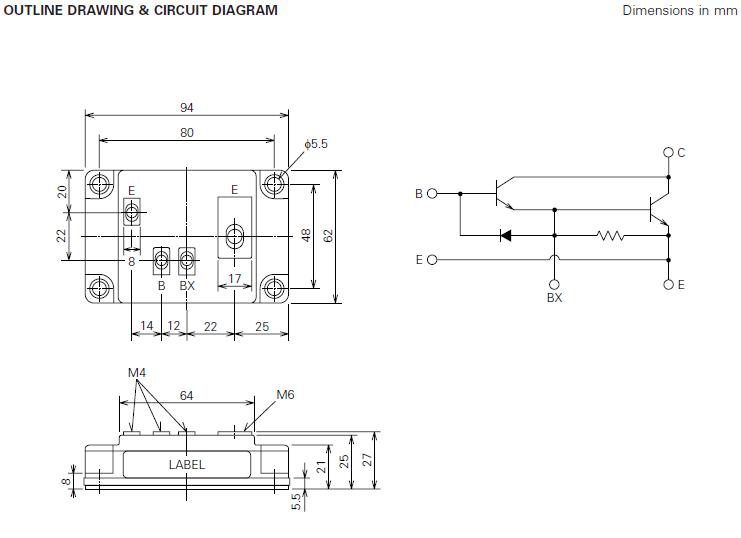

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 QM600HD-M |
Other |
|
Data Sheet |
Negotiable |
|
||||
