AMC6821

fan controller, –0.3 to +6.5 V, 10Hz to 40kHz, SMBus Interface, RoHS Compliant, SSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.20~7.90 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.20~7.90

PartNumber:: AMC6821

Brand:: Texas Instruments - TI | Pack: SSOP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. qi's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-23

From Other Seller

Part Number:AMC6821
US $3.20 - 7.90
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

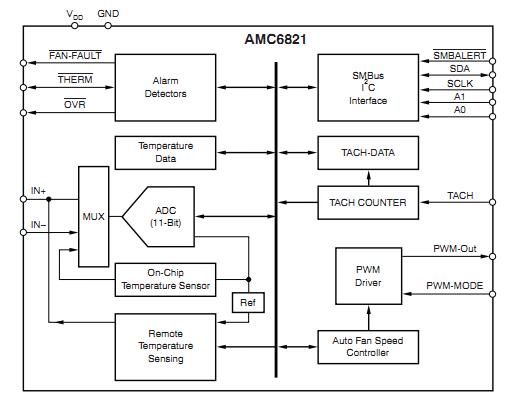

The AMC6821 is an intelligent temperature monitor and pulse-width modulation (PWM) fan controller. It is designed for noise-sensitive or power-sensitive applications that require active system cooling. Using either a low-frequency or a high-frequency PWM signal, the AMC6821 can simultaneously drive a fan, monitor remote sensor diode temperatures, and measure and control the fan speed so that it operates with minimal acoustic noise at the lowest possible speed. The applications of the AMC6821 include Notebook and Desktop PCs, Network Servers, Telecommunications Equipment, PC-Based Equipment and DLP and LCD Projectors.

Parametrics

AMC6821 absolute maximum ratings: (1)VDD to GND: –0.3 to +6.5 V; (2)Digital input voltage to GND: –0.3 to +6.5 V; (3)Input current: 10 mA; (4)Select pins A0, A1, PWM-MODE to GND: –0.3 to V DD + 0.3 V; (5)Analog input voltage to GND: –0.3 to V DD + 0.3 V; (6)Operating temperature range: –40 to +125℃; (7)Storage temperature range: –65 to +150℃; (8)Junction temperature (T J Max): +150℃.

Features

AMC6821 features: (1)Remote Temperature Sensor: ± 2℃ Accuracy, 0.125℃ Resolution; (2)Local Temperature Sensor: ± 2℃ Accuracy, 0.125℃ Resolution; (3)PWM Controller; (4)PWM Frequency: 10Hz to 40kHz Duty Cycle: 0% to 100%, 8 Bits; (5)Automatic Fan Speed Control Loops; (6)SMBus Interface; (7)Power: 2.7V to 5.5V; (8)Package (Green): QSOP-16 (4mm × 5mm); (9)RoHS Compliant.
