Product Summary

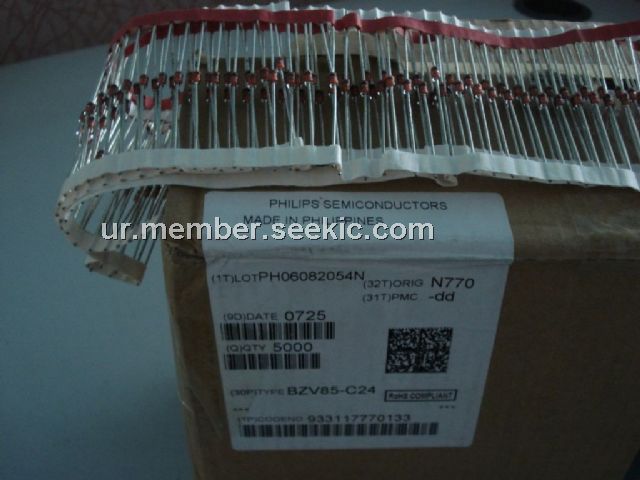

The BZV85-C24 is a voltage regulator diode. It is available in the normalized E24 approximately ±5 % tolerance range. The BZV85-C24 is applicated for Stabilization purposes.
Parametrics
BZV85-C24 absolute maximum ratings: (1)IF forward current: 500 mA; (2)Ptot total power dissipation(Tamb = 25 °C; lead length 10 mm): 1 W; (3)PZSM non-repetitive peak reverse power dissipation(square wave; tp = 100 μs): 60 W; (4)Tj junction temperature: 200℃; (5)Tstg storage temperature: -65℃ to +200℃.
Features
BZV85-C24 features: (1)Total power dissipation: max. 1.3 W; (2)Tolerance series: approximately ±5 %; (3)Working voltage range: nominal 3.3 V to 75 V; (4)Non-repetitive peak reverse power dissipation: max. 60 W; (5)Small hermetically sealed glass package.
Diagrams
-
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() BZV85-C24 T/R |
![]() NXP Semiconductors |
![]() Zener Diodes DIODE ZENER 5 PCT TAPE AXIAL |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() BZV85-C24,113 |
![]() NXP Semiconductors |
![]() Zener Diodes DIODE ZENER 5 PCT |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() BZV85-C24,133 |
![]() NXP Semiconductors |
![]() Zener Diodes Diode Zener Single 24.2V 5% 1.3W 2-Pin |
![]() Data Sheet |
![]()
|
|
