Product Summary

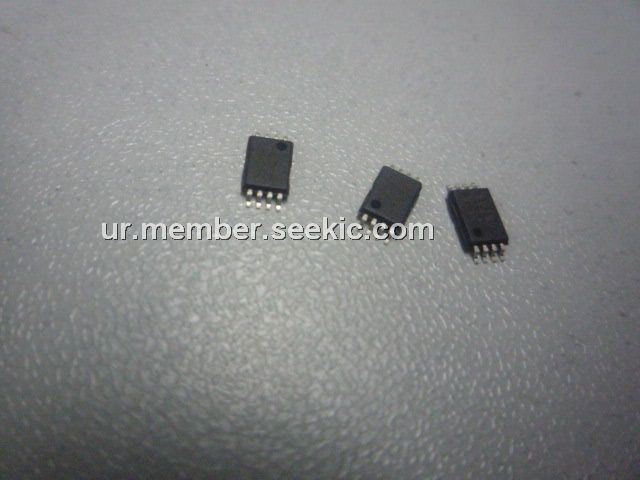

The AT93C46-10TI-2.7 is the 3-wire Serial EEPROM which provides 1024/2048/4096 bits of serial electrically erasable programmable read only memory (EEPROM) organized as 64/128/256 words of 16 bits each, when the ORG Pin is connected to VCC and 128/256/512 words of 8 bits each when the AT93C46-10TI-2.7 is tied to ground. The device is optimized for use in many industrial and commercial applications where low power and low voltage operations are essential. The AT93C46-10TI-2.7 is available in space saving 8-pin PDIP and 8-pin JEDEC and EIAJ SOIC packages.
Parametrics
AT93C46-10TI-2.7 absolute maximum ratings: (1)Operating Temperature: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V; (4)Maximum Operating Voltage: 6.25V; (5)DC Output Current: 5.0 mA.
Features
AT93C46-10TI-2.7 features: (1)Low Voltage and Standard Voltage Operation; (2)User Selectable Internal Organization; (3)3-Wire Serial Interface; (4)2 MHz Clock Rate (5V) Compatibility; (5)Self-Timed Write Cycle (10 ms max); (6)High Reliability; (7)Automotive Grade and Extended Temperature Devices Available; (8)8-Pin PDIP, 8-Pin JEDEC and EIAJ SOIC, and 8-Pin TSSOP Packages.

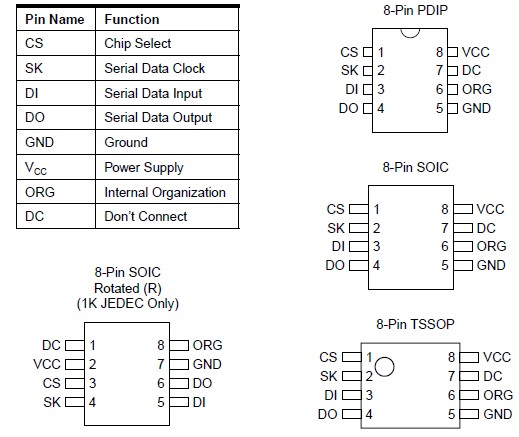

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT93C46-10TI-2.7 |
|
IC EEPROM 1KBIT 2MHZ 8TSSOP |
Data Sheet |
Negotiable |
|
||||
|
AT93C46-10TI-2.7 SL383 |
|
IC EEPROM 1KBIT 2MHZ 8TSSOP |
Data Sheet |
Negotiable |
|
||||
