Product Summary

The BZX85C24-TAP is a zener diode. It is applicated for Voltage stabilization.

Parametrics

BZX85C24-TAP absolute maximum ratings: (1)Power dissipation: 1300 mW; (2)Junction to ambient: 110 K/W; (3)Junction temperature Tj: 175℃; (4)Storage temperature range Tstg: - 55℃ to + 175℃.

Features

BZX85C24-TAP features: (1)Silicon planar power Zener diodes; (2)For use in stabilizing and clipping circuits with high power rating; (3)The Zener voltages are graded according to the international E 24 standard. Replace suffix "C" with "B" for ±2 % tolerance; (4)Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC; (5)Halogen-free according to IEC 61249-2-21 definition.

Diagrams

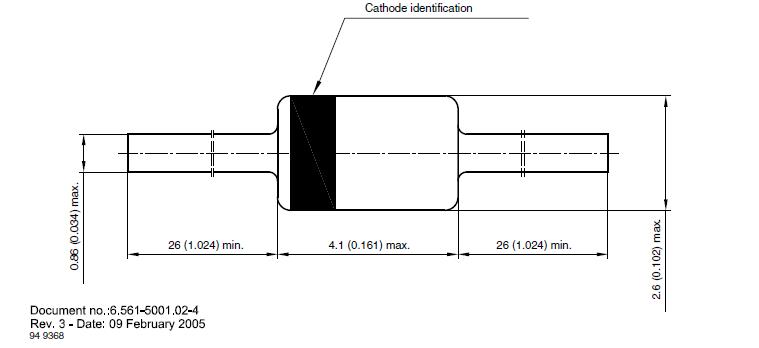

BZX85C24-TAP package dimensions-

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

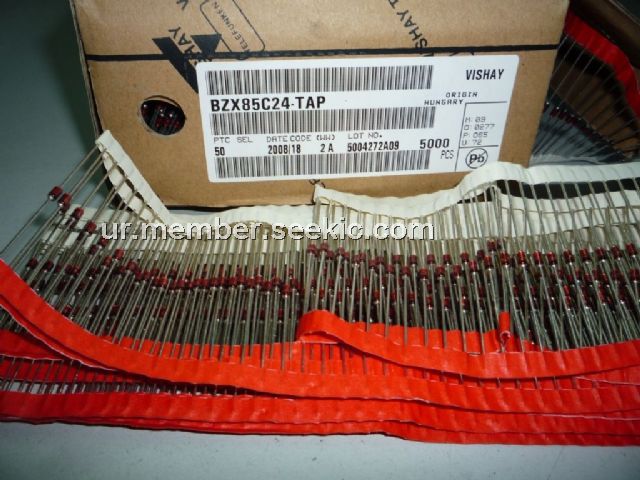

BZX85C24-TAP
BZX85C24-TAP
Vishay Semiconductors
Zener Diodes 24 Volt 1.3 Watt 5%
Data Sheet
0-1: $0.04
1-10: $0.04
10-100: $0.03
100-500: $0.03
