Product Summary

The MX25L12845EMI-10G is the 134,217,728 bits serial Flash memory, which is configured as 16,777,216 x 8 internally. When it is in two or four I/O mode, the structure becomes 67,108,864 bits x 2 or 33,554,432 bits x 4. The MX25L12845EMI-10G features a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus. The three bus signals are a clock input (SCLK), a serial data input (SI), and a serial data output (SO). The MX25L12845EMI-10G provides high performance read mode, which may latch address and data on both rising and falling edge of clock.

Parametrics

MX25L12845EMI-10G absolute maximum ratings: (1)Ambient Operating Temperature (Industrial grade): -40 to 85℃; (2)Storage Temperature: -55 to 125℃; (3)Applied Input Voltage: -0.5V to 4.6V; (4)Applied Output Voltage: -0.5V to 4.6V; (5)VCC to Ground Potential: -0.5V to 4.6V.

Features

MX25L12845EMI-10G features: (1)Serial Peripheral Interface compatible, Mode 0 and Mode 3; (2)134,217,728 x 1 bit structure or 67,108,864 x 2 bits (two I/O mode) structure or 33,554,432 x 4 bits (four I/O mode)structure; (3)4096 Equal Sectors with 4K bytes each: Any Sector can be erased individually; (4)512 Equal Blocks with 32K bytes each: Any Block can be erased individually; (5)256 Equal Blocks with 64K bytes each: Any Block can be erased individually; (6)Power Supply Operation: 2.7 to 3.6 volt for read, erase, and program operations; (7)Latch-up protected to 100mA from -1V to Vcc +1V.

Diagrams

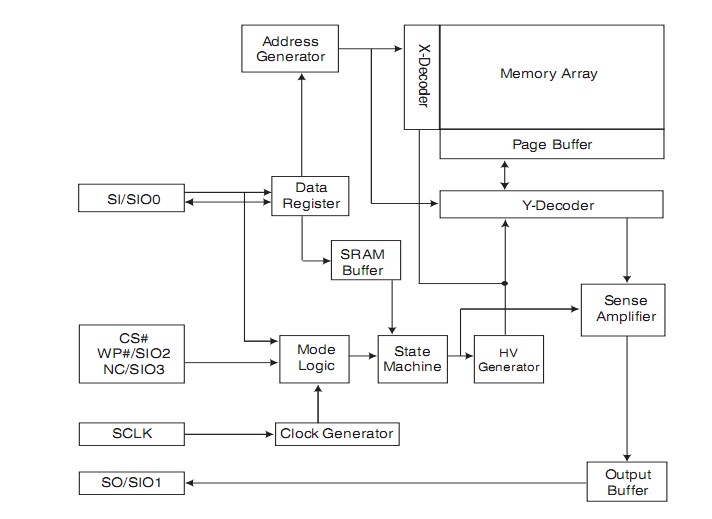

MX25L12845EMI-10G block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MX25L12845EMI-10G
MX25L12845EMI-10G

IC FLASH SER 128MB 104MHZ 16SOP
Data Sheet
0-1: $2.01
1-10: $1.82
10-50: $1.78
50-100: $1.59
100-250: $1.59
250-500: $1.53
500-1000: $1.45
1000-2500: $1.44
2500-5000: $1.29
