Product Summary

The CDCE913 is a modular PLL-based low-cost, high-performance, programmable clock synthesizer, multiplier, and divider. It generates up to 3 output clocks from a single input frequency. Each output can be programmed in-system for any clock frequency up to 230 MHz, using the integrated configurable PLL. The applications of the CDCE913 include: D-TV, STB, IP-STB, DVD-Player, DVD-Recorder, Printer.

Parametrics

CDCE913 absolute maximum ratings: (1)VDD Supply voltage range: –0.5 to 2.5 V; (2)VI Input voltage range: –0.5 to VDD + 0.5 V; (3)VO Output voltage range: –0.5 to VDD + 0.5 V; (4)II Input current (VI < 0, VI > VDD:) 20 mA; (5)IO Continuous output current 50 mA; (6)Tstg Storage temperature range: –65 to 150 ℃; (7)TJ Maximum junction temperature: 125 ℃.

Features

CDCE913 features: (1)Free Selectable Output Frequency up to 230 MHz; (2)Low-Noise PLL Core: PLL Loop Filter Components Integrated; Low Period Jitter (Typical 50 ps); (3)1.8-V Device Power Supply; (4)Separate Output Supply Pins: 3.3 V and 2.5 V; (5)Wide Temperature Range –40℃ to 85℃; (6)Packaged in TSSOP; (7)Development and Programming Kit for Easy PLL Design and Programming (TI Pro-Clock).

Diagrams

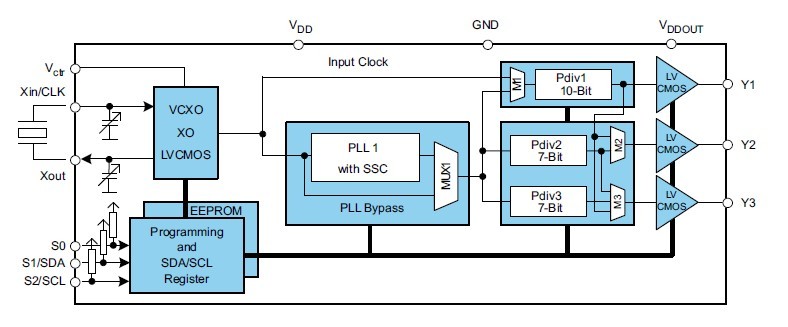

CDCE913 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CDCE913PERF-EVM
CDCE913PERF-EVM

Texas Instruments

Clock & Timer Development Tools CDCE913 Perf Eval Mod

Data Sheet

0-1: $100.85
CDCE913PW
CDCE913PW

Texas Instruments

Clock Synthesizer / Jitter Cleaner Programmable 1PLL VCXO Clock Synth

Data Sheet

0-1: $3.28
1-25: $2.63
25-100: $2.39
100-250: $2.16
CDCE913PWG4
CDCE913PWG4

Texas Instruments

Clock Synthesizer / Jitter Cleaner Programmable 1-PLL VCXO Clock Synth

Data Sheet

0-1: $2.63
1-25: $2.11
25-100: $1.82
100-250: $1.54
CDCE913PWR
CDCE913PWR

Texas Instruments

Clock Synthesizer / Jitter Cleaner Programmable 1PLL VCXO Clock Synth

Data Sheet

0-1540: $1.25
1540-2000: $1.23
2000-5000: $1.20
CDCE913PWRG4
CDCE913PWRG4

Texas Instruments

Clock Synthesizer / Jitter Cleaner Programmable 1-PLL VCXO Clock Synth

Data Sheet

0-1540: $1.25
1540-2000: $1.23
2000-5000: $1.20
