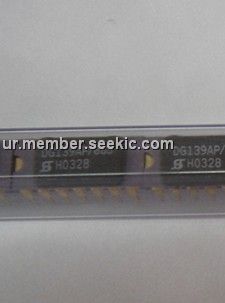

Product Summary

The DG139AP/883 is a driver with differentially driven FET switches. The device may be treated as a special purpose differential amplifier which controls the conduction state of the FET switches. The differential output of the DG139AP/883 sets the seitches in opposition, one pair open and the other pair closed. All switches may be operated by applying a positive control signal to the VR terminal.

Parametrics

DG139AP/883 absolute maximum ratings: (1)V+ - V-:36V; (2)VS - V-:30V; (3)V+ - VS:30V; (4)VS - VD:±22V; (5)VR - V-:21V; (6)V+ - VR:17V; (7)V+ - VIN1 or VIN2:14V; (8)VIN1 - VIN2:±6V; (9)VIN1 - VR:±6V; (10)VIN2 - VR:±6V; (11)power dissipation:750mW; (12)current(any terminal):30mA; (13)storage temperature:-65℃ to +150℃; (14)operating temperature:-55℃ to +125℃; (15)lead temperature(soldering, 10sec):300℃.

Features

DG139AP/883 features: (1)each channel complete-interfaces with most integrated logic; (2)low OFF power dissipation, 1mW; (3)switches analog signals up to 20 volts peak-to-peak; (4)low rDS(on), 10ohms max.

Diagrams

DG139AP/883 circuit diagram
