Product Summary

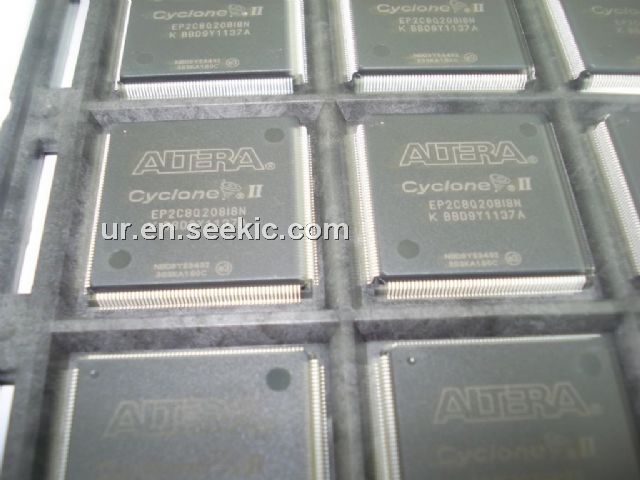

The EP2C8Q208I8N is an enhanced configuration device. It is a single-device, high-speed, advanced configuration solution for very high-density FPGAs. The core of an enhanced configuration device is divided into two major blocks: a configuration controller and a flash memory. The flash memory is used to store configuration data for systems made up of one or more Altera FPGAs.

Parametrics

EP2C8Q208I8N absolute maximum ratings: (1)Supply voltage: 4.6V; (2)DC input voltage: 3.6V; (3)DC VCC or ground current: 100mA; (4)power dissipation: 360mW; (5)ambient temperature: -65 to 135℃; (6)junction temperature: 135℃.

Features

EP2C8Q208I8N features: (1)External flash interface supports parallel programming of flash and external processor access to unused portions of memory; (2)Flash memory block/sector protection capability via external flash interface; (3)Supported in EPC16 and EPC4 devices; (4)Page mode support for remote and local reconfiguration with up to eight configurations for the entire system; (5)Compatible with Stratix series Remote System Configuration feature.

Diagrams

EP2C8Q208I8N block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EP2C8Q208I8N
EP2C8Q208I8N

IC CYCLONE II FPGA 8K 208-PQFP
Data Sheet
0-1: $14.58
