Product Summary
The FS10UM is a power MOSFET. It is suitable for SMPS, DC-DC Converter, battery charger, power supply of printer, copier, HDD, FDD, TV, VCR, per-sonal computer etc.
Parametrics
FS10UM absolute maximum ratings: (1)Drain-source voltage, VDSS: 300V; (2)Gate-source voltage, VGSS: ±30V; (3)Drain current, ID: 10A; (4)Drain current (Pulsed), IDM: 30A; (5)Maximum power dissipation, PD: 90W; (6)Channel temperature, Tch: -55 to 150℃; (7)Storage temperature, Tstg: -55 to 150℃; (8)Weight: 2.0g.
Features
FS10UM features: (1)VDSS: 300V; (2)rDS (ON) (MAX): 0.68Ω; (3)ID: 10A.

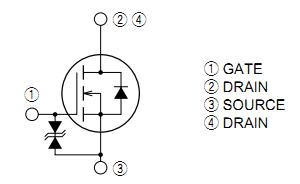

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 FS10UM-10 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
FS10UM-12 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
FS10UM-14A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
FS10UM-6 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
FS10UM-9 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
FS10UMA-4A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
FS10UMA-5 |
Other |
|
Data Sheet |
Negotiable |
|
||||
