Product Summary

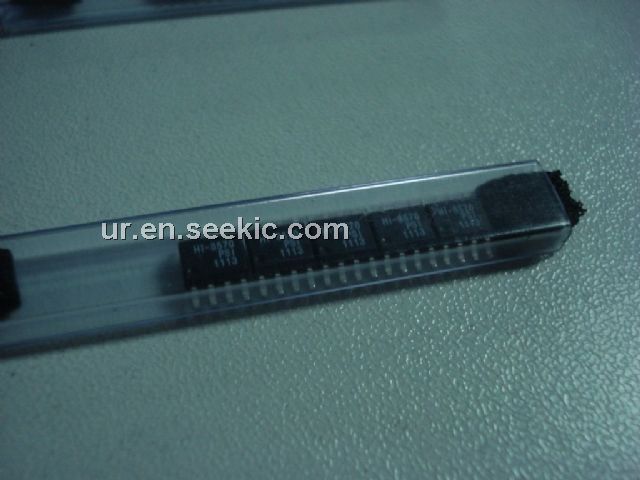

The HI-8570PSI is CMOS integrated circuits designed to directly drive the ARINC 429 bus in an 8-pin package. Two logic inputs control a differential voltage between the output pins producing a +10 volt One, a-10 volt Zero, and a 0 volt Null. The HI-8570PSI has 37.5 ohms in series with each line driver output. The HI-8571 provides the option to bypass part of the output resistance so external resistance may be added for lightning protection circuits.

Parametrics

HI-8570PSI absolute maximum ratings: (1)Supply voltages: (V+:+7V; V-:-7V); (2)DC current per input pin: +10mA; (3)Power dissipation at 25°C; (4)Solder Temperature: 275°C for 10 sec; (5)Storage Temperature: -65°C to +150°C.

Features

HI-8570PSI features: (1)Direct ARINC 429 line driver interface in a small package;(2)On-chip line driver slope control and selection by logic input;(3)Low current 5 volt supplies;(4)CMOS / TTL logic pins;(5)Plastic and ceramic package options-surface mount and DIP;(6)Thermally enhanced SOIC packages;(7)Mil processing available.

Diagrams

HI-8570PSI pin configuration
