Product Summary

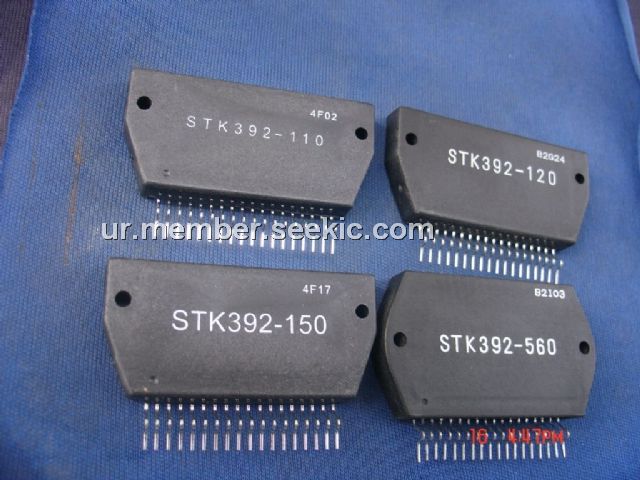

The STK392-120 is a convergence correction circuit IC for video projectors. It incorporates three output amplifiers in a single package, making possible the construction of CRT horizontal and vertical convergence correction output circuits for each of the RGB colors using two hybrid ICs. The STK392-120 is used in video projectors.
Parametrics
STK392-120 absolute maximum ratings: (1)Maximum supply voltage: ±44 V; (2)Maximum collector current: ±4.0 A; (3)Thermal resistance: 2.7℃/W; (4)Junction temperature: 150℃; (5)Operating temperature: 125℃; (6)Storage temperature: –30 to +125℃.
Features
STK392-120 features: (1)3 output amplifier circuits in a single package; (2)High maximum supply voltage (VCC max = ±44V); (3)Low thermal resistance (qj-c=2.7℃/W); (4)High temperature stability (TC max=125℃); (5)Separate predriver and output stage supplies; (6)Output stage supply switching for high-performance designs; (7)Low inrush current when power is applied.
Diagrams
 |
