Product Summary

IC0400C-778-BF is a secure microcontroller designed to provide an interoperable, secure, and cost-effective environment for new generations of trusted devices.IC0400C-778-BF provides extensive communication support with USB On-The-Go (OTG), UART, SPI&8482;, I2C, PS/2, IrDA, and parallel SPP. In addition, the USIP PRO offers a unique set of peripherals such as smart card controllers, LCD interface, thermal printer interface, GPIO, PWM, watchdog, general-purpose timers, and a built-in ADC.IC0400C-778-BF can be applied in EFTPOS, PIN Pads, ATM, Keyboards, Healthcare Reader, Electronic Metering.

Features

IC0400C-778-BF features:(1)MIPS32 4KSd RISC Processor; (2)Memories; (3)Security Features; (4)Interrupt Controller1D/2D DMALCD Interface: 8-Bit Bus, 6800 Compatible; (5)Three ISO 7816 Controllers; (6)Thermal Printer Interface; (7)USB 2.0 OTG Full Speed with 16 Endpoints; (8)Four UARTs (IrDA and Full Modem Support); (9)I2C Master/Slave; (10)SPI Master/Slave with Up to Seven Slaves; (11)6-Channel, 10-Bit ADC; (12)32 GPIOs; (13)Four 16-Bit Timers/Counters; (14)Two PWMs with One 15mA Output; (15)Watchdog Timer; (16)JTAG Boundary Scan.

Diagrams

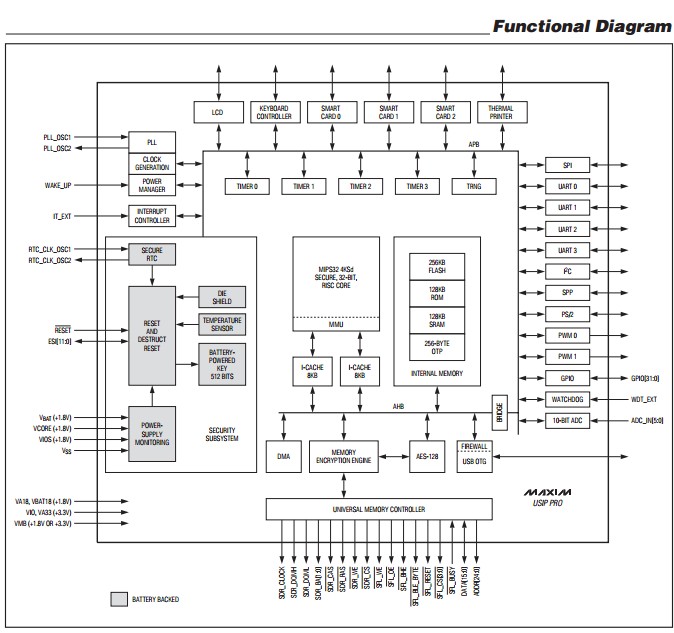

IC0400C-778-BF functional diagram
