Product Summary

The IRF830PBF is the third generation HEXFET from International Rectifier which provides the designer with the best combination of fast swicthing, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220 package is universally prefered for all commerical-industrial applications at power dissipation levels to approximately 50 W.

Parametrics

IRF830PBF absolute maximum ratings: (1)Continuous drain current, VGS@ 10V: 4.5 A; (2)Continuous drain current, VGS@10V: 2.9 A; (3)Pulse drain current: 18 A; (4)Power dissiaption: 74 W; (5)Linear derating factor: 0.59 W/℃; (6)Gate-to-source voltage: ±20 V; (7)Single pulse avalanche energy: 280 mJ.

Features

IRF830PBF features: (1)Dynamic dv/dt rating; (2)Repetitive avalanche rated; (3)Fast switching; (4)Ease of paralleling; (5)Simple drive requirements; (6)Lead-free.

Diagrams

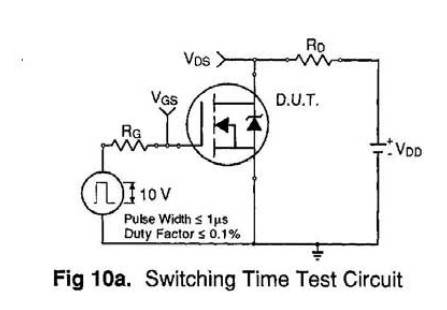

IRF830PBF test circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

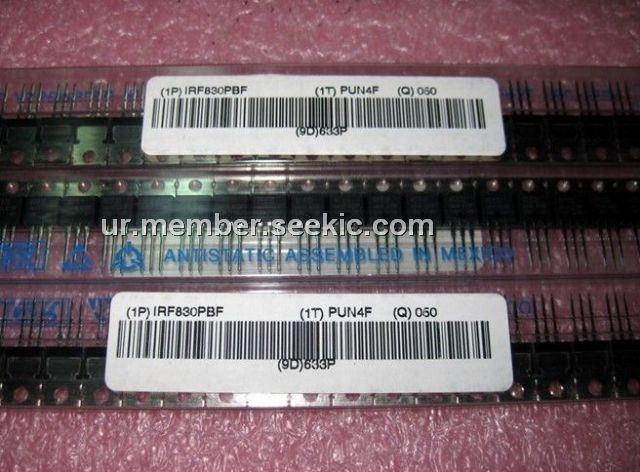

IRF830PBF
IRF830PBF
Vishay/Siliconix
MOSFET N-Chan 500V 4.5 Amp
Data Sheet
0-1: $0.68
1-10: $0.54
10-100: $0.47
100-250: $0.41
