Product Summary

The JANTX2N3020 is a planar SCR. It is intended for use in military and space applications requiring a high degree of reliability. The JANTX2N3020 offers a unique combination of extremely fast switching, precise triggering, high pulse power, small size, intrinsic parameter stability, and high radiation tolerance.

Parametrics

JANTX2N3020 absolute maximum ratings: (1)repetitive peak off-state voltage:30V; (2)repetitive peak reverse voltage:30V; (3)D.C. on-state current:500mA; (4)repetitive peak on-state current:30A; (5)surge on-state current:5A or 8A; (6)peak gate current:250mA; (7)average gate current:25mA; (8)reverse gate voltage:5V; (9)reverse gate current:3mA; (10)storage temperature range:-65℃ to +200℃; (11)operating temperature range:-65℃ to +150℃.

Features

JANTX2N3020 features: (1)JAN and JANTX types available; (2)fully characterized for worst case design; (3)passivated planar construction for maximum reliability and parameter uniformity; (4)low on-state voltage and fast switching at high current levels; (5)typical turn-on time:0.12us; (6)typical recovery time:0.7us; (7)pulse current: to 30A.

Diagrams

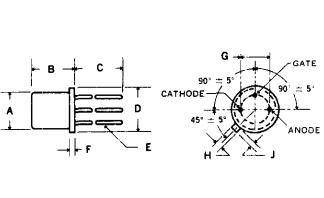

JANTX2N3020 package dimensions
