Product Summary

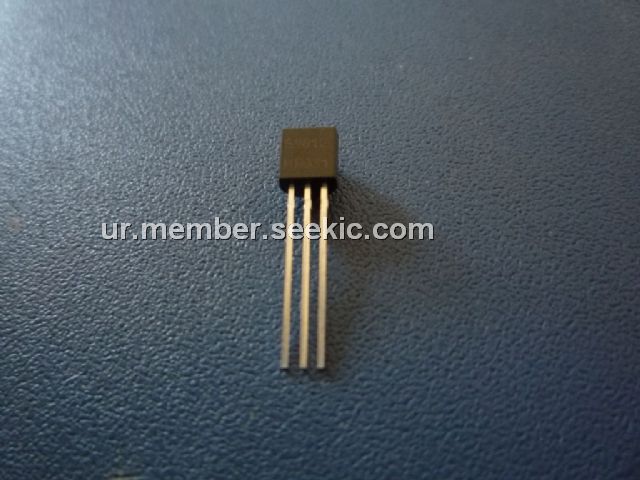

The S9012 is the PNP general purpose transistor.
Parametrics
S9012 absolute maximum ratings: (1)Collector-Emitter Voltage: -25V; (2)Collector-Base Voltage: -40V; (3)Emitter-Base Voltage: -5V; (4)Collector Current: -500mA; (5)Total Device Dissipation: 0.625 W; (6)Junction Temperature: 150℃; (7)Storage, Temperature: -55 to +150℃.
Features
S9012 features: (1)Collector-Emitter Voltage: -25V; (2)Collector-Base Voltage: -40V; (3)Emitter-Base Voltage: -5V; (4)Collector Cutoff Current(VCE= -20 Vdc, I =0): -0.1μA; (5)Collector Cutoff Current(VCE= -40 Vdc, I =0): -0.1μA; (6)Emitter Cutoff Current(VCE= -20 Vdc, I =0): -0.1μA.

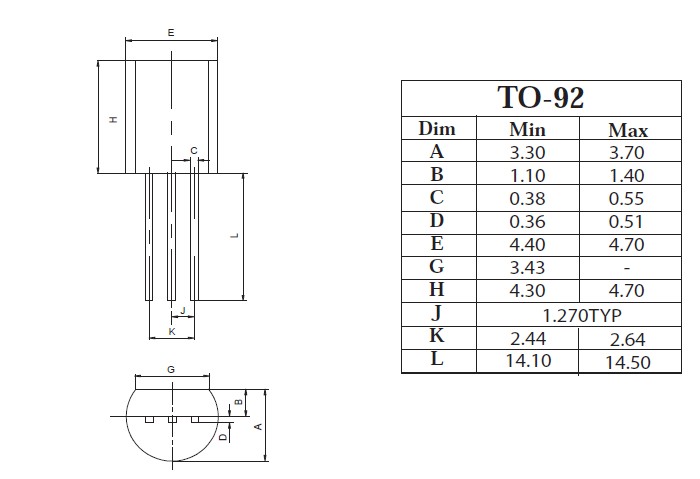

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 S9012LT1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S9012 |
Other |
|
Data Sheet |
Negotiable |
|
||||
