Product Summary
The LQ075V3DG01 is a color active matrix transmissive LCD module incorporating amorphous silicon TFT. The LQ075V3DG01 is composed of a color TFT-LCD panel, driver ICs, control circuits and power supply circuitry and a backlight unit. Graphics and texts can be displayed on a 640×RGB×480 dots panel with 262,144 colors by feeding 18 bit data signal, 4 timing signals, +3.3V DC power supply for TFT-LCD and AC power supply for backlight.
Parametrics
LQ075V3DG01 absolute maximum ratings: (1)input voltage, VI: -0.3 to VCC+0.3V; (2)supply voltage, VCC: 0 to 4.0V; (3)storage temeperature, Tstg: -30 to 80℃; (4)operating temperature (panel surface), Topp: -30 to 80℃
Features
LQ075V3DG01 features: (1)fine images with stripe aligned 307200 pixels on 7.5 inch diagonal screen; (2)adapting a wide viewing angle technology; (3)high contrast, thanks to active matrix drive system; (4)AG polarizing filter; (5)light and slim compact module; (6)natural coloring reproducibility by employing normally-white-mode, which has good nature in coloring image inversion both horizontally and vertically; (7)RoHS compliance.

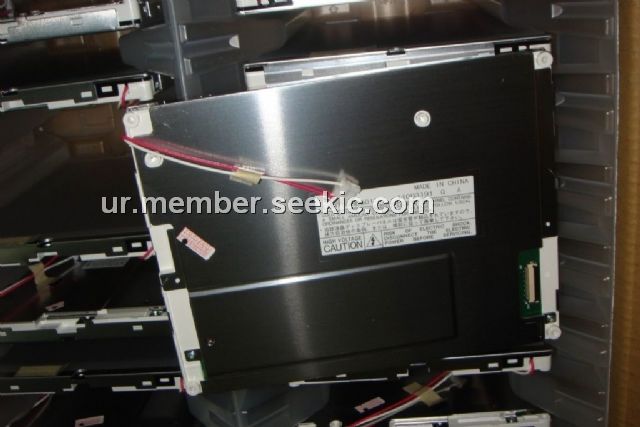

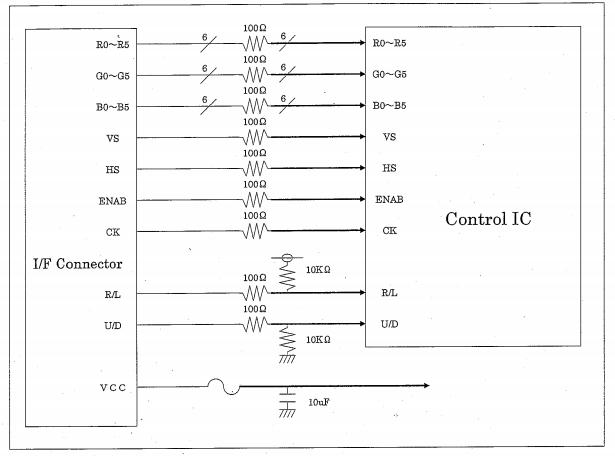

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQ075V3DG01 |
Sharp Microelectronics |
TFT Displays & Accessories 7.5" 640 X 480 TFT LCD MODULE |
Data Sheet |
Negotiable |
|
||||||||
