Product Summary

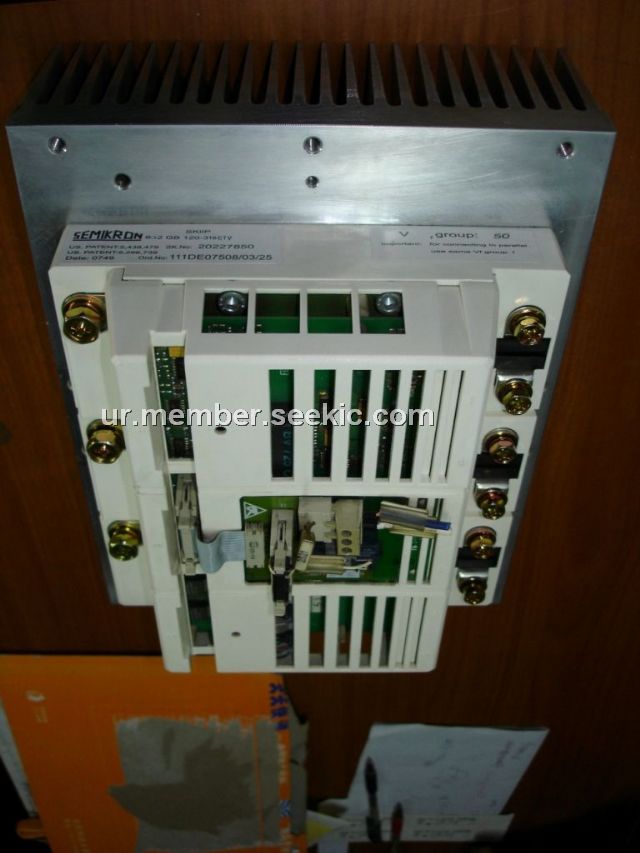

The SKIIP632GB120-315CTV is the 2-pack integrated intelligent power system.
Parametrics
SKIIP632GB120-315CTV absolute maximum ratings: (1)Stabilized 15V power supply: 18V; (2)Unstabilized 24V power supply: 30V; (3)Input signal voltage(high) 15+0.3V; (4)Secondary to primary side: 75 kV/μs; (5)Input/output: 3000Vac; (6)Switching frequency: 20kHz; (7)Output frequency: 1kHz; (8)Operating/storage temperature: -40 to +85℃.
Features
SKIIP632GB120-315CTV features: (1)CMOS compatible inputs; (2)Wide range power supply; (3)Integrated circuitry to sense phase current, heat sink temperature and DC-bus voltage; (4)Short circuit protection; (5)Over current protection; (6)Over voltage protection; (7)Power supply protected against under voltage; (8)Interlock of top/bottom switch; (9)Isolation by transformers; (10)Fibre optic interface.
Diagrams
 |
