Product Summary
The LVT16245B is a 16-bit transceiver.
Parametrics
LVT16245B absolute maximum ratings: (1)supply voltage: -0.5 to 4.6V; (2)Input voltage: -0.5 to 7V; (3)output voltage: -0.5 to 7V; (4)Input clamping current: -50mA; (5)Output current: 128mA; (6)Storage temperature: -65 to 150℃; (7)total power dissipation: 500mW.
Features
LVT16245B features: (1)TTL input and output switching levels; (2)Input and output interface capability to systems at 5 V supply; (3)Bus hold data inputs eliminate need for external pull-up resistors to hold unused inputs; (4)Live insertion and extraction permitted; (5)Power-up 3-state; (6)No bus current loading when output is tied to 5 V bus.

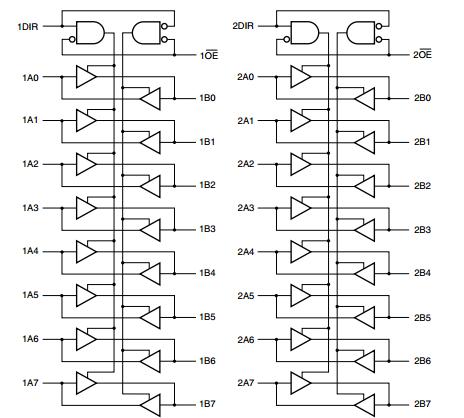

Diagrams
