MIC4425BN

dual 3A-peak low-side mosfet driver, +22V, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.60~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.60~10.00

PartNumber:: MIC4425BN

Brand:: Micrel Semiconductor - Micrel | Pack: DIP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. qi's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-06

From Other Seller

Part Number:MIC4425BN
US $0.60 - 10.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
MJ16018

US $1.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

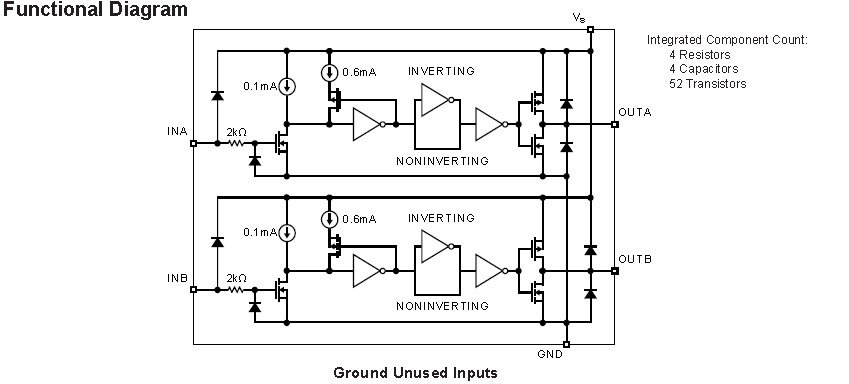

The MIC4425BN is a dual 3A-peak low-side mosfet driver. The MIC4425BN is a highly reliable BiCMOS/ DMOS/ buffer/ driver/ MOSFET driver. The MIC4425BN is pin-compatible. The MIC4425BN is capable of giving reliable service in more demanding electrical environments than their predecessors. The MIC4425BN will not latch under any conditions within its power and voltage ratings. The MIC4425BN can survive up to 5V of noise spiking, of either polarity, on the ground pin. The MIC4425BN can accept, without either damage or logic upset, up to half an amp of reverse current (either polarity) forced back into their outputs.

Parametrics

MIC4425BN absolute maximum ratings: (1)Supply Voltage: +22V; (2)Input Voltage: VS + 03V to GND – 5V; (3)Junction Temperature: 150℃; (4)Storage Temperature Range: –65℃ to 150℃; (5)Lead Temperature (10 sec): 300℃; (6)ESD Susceptability: 1000V; (7)Supply Voltage (VS): +45V to +18V; (8)Temperature Range C Version: 0℃ to +70℃; (9)Temperature Range B Version: –40℃ to +85℃; (10)Package Thermal Resistance DIP θJA: 130℃/W; (11)Package Thermal Resistance DIP θJC: 42℃/W; (12)Wide-SOIC θJA: 120℃/W; (13)Wide-SOIC θJC: 75℃/W; (14)SOIC θJA: 120℃/W; (15)SOIC θJC: 75℃/W.

Features

MIC4425BN features: (1)Reliable, low-power bipolar/CMOS/DMOS construction; (2)Latch-up protected to >500mA reverse current; (3)Logic input withstands swing to V; (4)High 3A-peak output current; (5)Wide 4.5V to 18V operating range; (6)Drives 1800pF capacitance in 25ns; (7)Short <40ns typical delay time; (8)Delay times consistent with in supply voltage change; (9)Matched rise and fall times; (10)TTL logic input independent of supply voltage; (11)Low equivalent 6pF input capacitance; (12)Low 3.5typical output impedance; (13)Output voltage swings within 25mV of ground or VS.; (14)Inverting, noninverting, and differential configurations.
