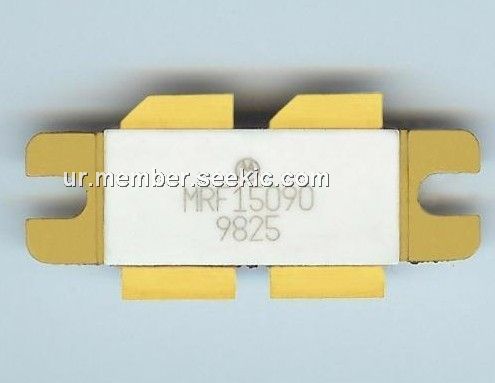

MRF15090

NPN silicon RF power transistor, 1400–1600 MHz, 25 Vdc, 250Watts, Motorola, Inc

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~85.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~85.00

PartNumber:: MRF15090

Brand:: Motorola, Inc - Motorola | Pack: DIP | D/C: 98+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. qi's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-30

From Other Seller

Part Number:MRF15090
US $1.00 - 85.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

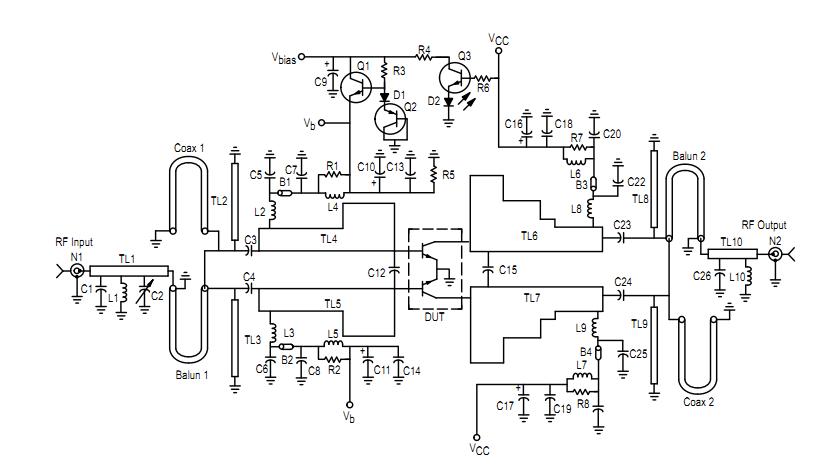

Product Summary

The MRF15090 is a NPN silicon RF power transistor designed for 26 volts microwave large–signal, common emitter, class A and class AB linear amplifier applications in industrial and commercial FM/AM equipment operating in the range 1400–1600 MHz.

Parametrics

MRF15090 absolute maximum ratings: (1)Collector–Emitter Voltage, VCEO: 25 Vdc; (2)Collector–Emitter Voltage, VCES: 60 Vdc; (3)Emitter–Base Voltage, VEBO: 4 Vdc; (4)Collector–Current — Continuous @ TJ(max) = 150℃, IC: 15 Adc; (5)Total Device Dissipation, PD: 250Watts at TC = 25℃; 1.43W/℃ ay Derate above 25℃; (6)Storage Temperature Range, Tstg: –65 to +150℃.

Features

MRF15090 features: (1)Specified 26 Volts, 1490 MHz, Class AB Characteristics: Output Power — 90 Watts (PEP); Gain — 7.5 dB Min @ 90 Watts (PEP); Collector Efficiency — 30% Min @ 90 Watts (PEP); Intermodulation Distortion — –28 dBc Max @ 90 Watts (PEP); (2)Third Order Intercept Point — 56.5 dBm Typ @ 1490 MHz, VCE = 24 Vdc, IC = 5 Adc; (3)Characterized with Series Equivalent Large–Signal Parameters from 1400–1600 MHz; (4)Characterized with Small–Signal S–Parameters from 1000–2000 MHz; (5)Silicon Nitride Passivated; (6)100% Tested for Load Mismatch Stress at All Phase Angles with 3:1 Load VSWR @ 28 Vdc, and Rated Output Power; (7)Gold Metallized, Emitter Ballasted for Long Life and Resistance to Metal Migration; (8)Circuit board photomaster available upon request by contacting RF Tactical Marketing in Phoenix, AZ.
