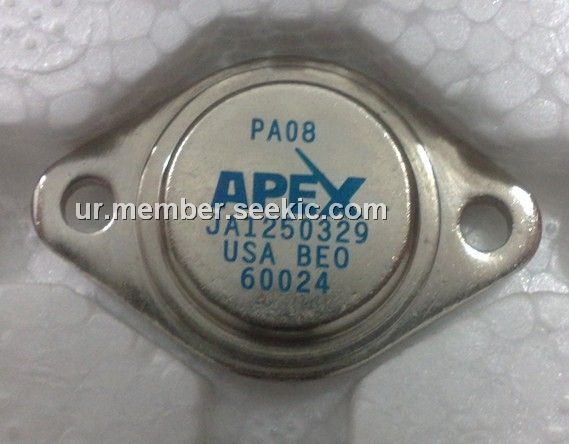

Product Summary

The PA08 is a high voltage operational amplifier designed for output voltage swings of up to ±145V with a dual (±) supply or 290V with a single supply. As a result, the PA08 features an unprecedented supply range and excellent supply rejection. The output stage is biased-on for linear operation. The applications of the PA08 are high voltage instrumentation, electrostatic transducers and deflection, programmable power supplies up to 290V, analog simulators.

Parametrics

PA08 absolute maximum ratings: (1)supply voltage, +VS to –VS:300V; (2)output current, within SOA:200mA; (3)power dissipation:17.5W; (4)input voltage, differential:±50V; (5)input voltage, common mode:±VS; (6)temperature, pin solder - 10s max:300℃; (7)temperature, junction1:200℃; (8)temperature range, storage –65℃ to +150℃; (9)operating temperature range, case:–55℃ to +125℃.

Features

PA08 features: (1)wide supply range:±15V to ±150V; (2)programmable output current limit; (3)high output current:Up to ±150mA; (4)low bias current:FET Input.

Diagrams

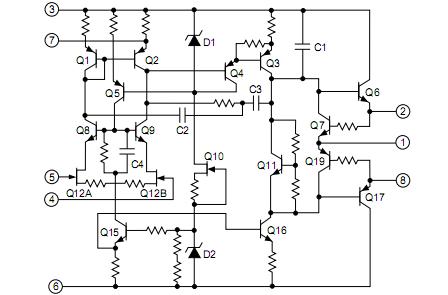

PA08 circuit diagram
