Product Summary

The SF2111A is a 140 MHz SAW filter.

Parametrics

SF2111A absolute maximum ratings: (1)Maximum Incident Power in Passband: +10 dBm; (2)Max. DC voltage between any 2 terminals: 30 VDC; (3)Operating Temperature Range: -40 to +85 ℃; (4)Storage Temperature Range: -40 to +85 ℃; (5)Suitable for lead-free soldering - Max. Soldering Profile: 260℃ for 30 s.

Features

SF2111A features: (1)Excellent Size-to-Performance Ratio; (2)Hermetic 13.3 x 6.5 mm Surface-mount Case; (3)Complies with Directive 2002/95/EC (RoHS).

Diagrams

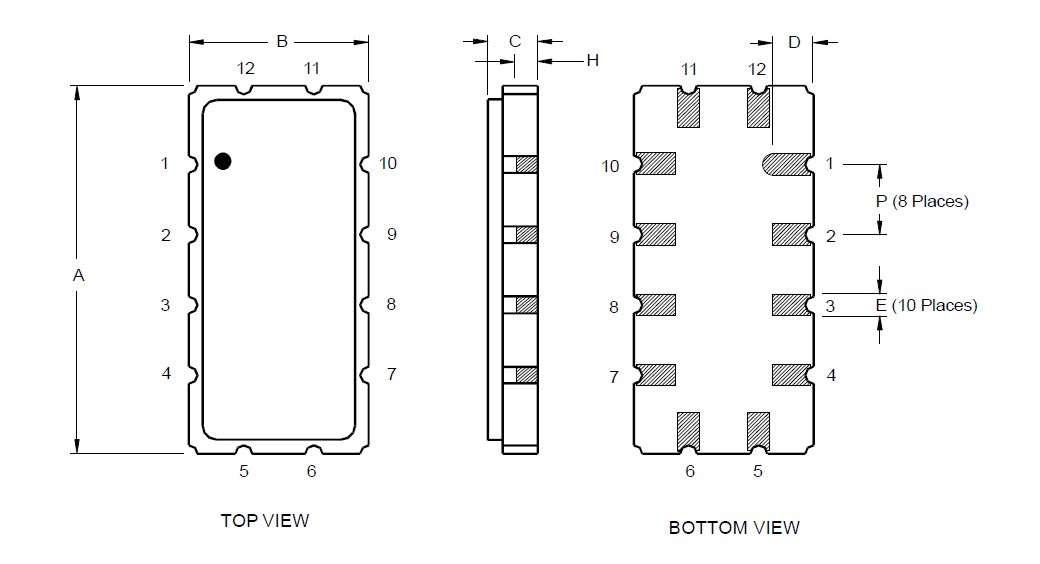

SF2111A package diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SF2111A
SF2111A
RFM
Signal Conditioning 140 MHz BW=15MHz
Data Sheet
0-250: $10.80
250-500: $9.72
