Product Summary

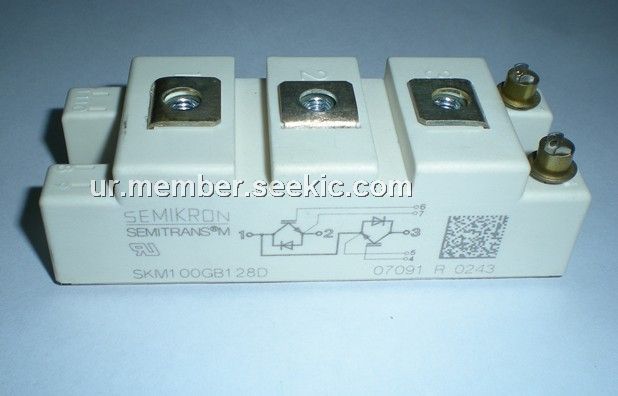

The SKM100GB128D is a SPT IGBT module.

Parametrics

SKM100GB128D absolute maximum ratings: (1)VCES, Tj=25℃: 1200V; (2)Ic, Tj=150℃: 145A; (3)ICRM, ICRM=2XIcnom: 150A; (4)VGS: ±20V; (5)tpsc, VCC=600V; VGE≤20V; Tj=125℃: 10μs.

Features

SKM100GB128D features: (1)SPT=Soft punch through techology; (2)VCEsat with positive temperature coefficient; (3)High short circuit capability, self limiting to 6xIc.

Diagrams

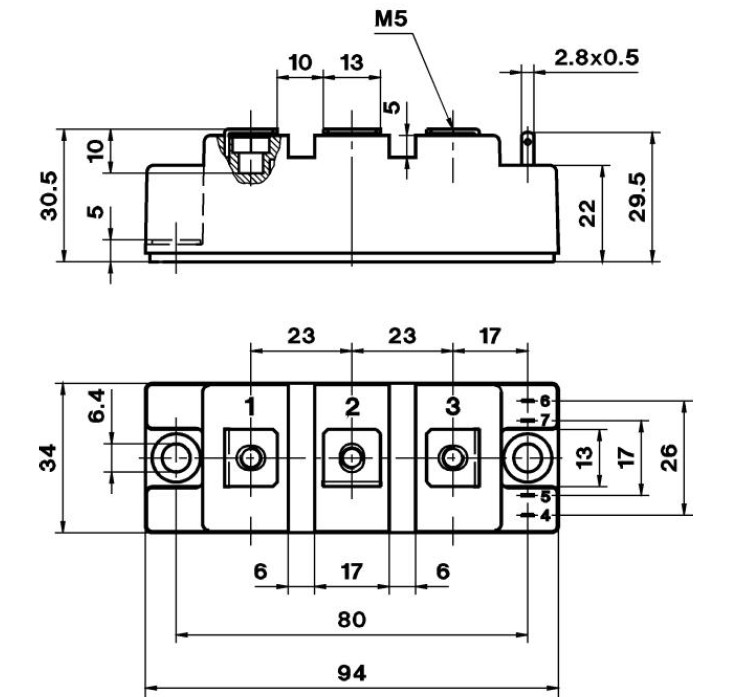

SKM100GB128D diagram
