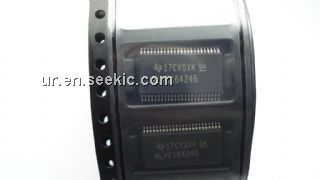

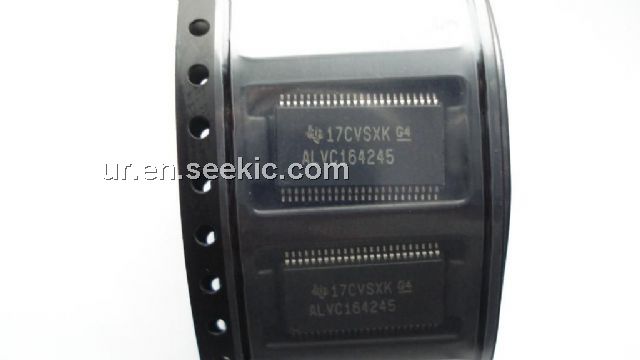

SN74ALVC164245

shifting transceiver, 2.5 to 3.3V, ±50mA, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.45~0.45 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	0.45 / Piece

PartNumber:: SN74ALVC164245

Brand:: Texas Instruments - TI | Pack: TSSOP | D/C: 08+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. qi's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-05

From Other Seller

Part Number:SN74ALVC164245
US $0.45 - 0.45
Quantity:

piece

Product Summary

The SN74ALVC164245 is a 16-bit 3.3 to 5V level-shifting transceiver with 3-state outputs. It contains two separate supply rails. B port has VCCB, which is set to operate at 3.3 V and 5 V. A port has VCCA, which is set to operate at 2.5 V and 3.3 V. This allows for translation from a 2.5-V to a 3.3-V environment, and vice versa, or from a 3.3-V to a 5-V environment, and vice versa.

Parametrics

SN74ALVC164245 absolute maximum ratings: (1)supply voltage range: -0.5 to 4.6V; (2)input voltage range: -0.5 to 6V; (3)input clamp current: -50mA; (4)continuous output current: ±50mA; (5)storage temperature range: -65 to 150℃.

Features

SN74ALVC164245 features: (1)Member of the Texas Instruments Widebus Family; (2)Max tpd of 5.8 ns at 3.3 V; (3)±24-mA Output Drive at 3.3 V; (4)Control Inputs VIH/VIL Levels Are Referenced to VCCA Voltage; (5)Latch-Up Performance Exceeds 250 mA Per JESD 17.
