STD03N

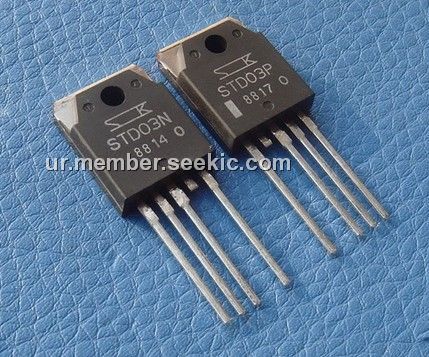

Darlington Transistor, TO-3, High power (160 W) handling, NPN and PNP versions

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~15.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~15.80

PartNumber:: STD03N

Brand:: Sanken electric - Sanken | Pack: TO | D/C: 88+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. qi's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-29

From Other Seller

Part Number:STD03N
US $1.00 - 15.80
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The STD03N is an enhanced Darlington transistor with built-in drivers and temperature compensation diode. Manufactured using the unique Sanken thin-wafer production technology, the STD03N achieves higher power levels through decreased thermal resistance, and can withstand higher voltages than similar devices on the market. The STD03N is provided in a 5-pin TO-3P plastic package with pin 4 removed. The applications of it are General amplifier applications, Professional audio amplifiers, Car audio amplifiers.

Parametrics

STD03N absolute maximum ratings: (1)Collector-Base Voltage:160 V; (2)Collector-Emitter Voltage:160 V; (3)Emitter-Base Voltage:5V; (4)Collector Current:15 A; (5)Base Current:1A; (6)Collector Power Dissipation:160 W; (7)Diode Forward Current:10 mA; (8)Junction Temperature:150℃; (9)Storage Temperature:–55℃ to 150℃.

Features

STD03N features: (1)Built-in temperature compensation diodes; (2)High power (160 W) handling in a small package (TO-3P), for minimized heat sink requirements; (3)Built-in drivers and temperature compensation diodes, reducing external component count and simplifying circuit design; (4)NPN and PNP versions; (5)Emitter terminals placed symmetrically, pin 5 on NPN and pin 1 on PNP models, allowing adjacent placement on PCB to minimize trace length and output skew when used in pairs; (6)Approved by major manufacturers.
