Product Summary

The STK3102III is a 2-Channel voltage amplifier for 90 to 100W AF power amplifier.

Parametrics

STK3102III absolute maximum ratings:(1)Maxium supply voltage:±75V; (2)Operating case temperature: 115°C; (3)Storage temperature: -30 to +115°C.

Features

STK3102III features:(1)The AC amp circuit configuration eliminates the need to use an external midpoint adujust crcuit; (2)external parts provides more flexibility in phase compensation; (3)low distortion (0.005%) due to built-in current mirror circuit.

Diagrams

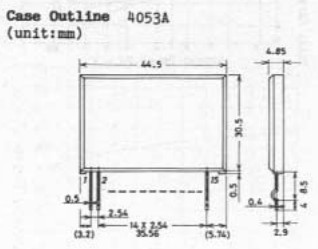

STK3102III case outline
