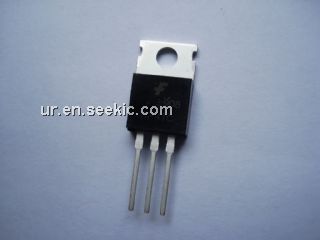

Product Summary
The TIP41C is intented for use in power amplifier and switching applications. It is designed for power amplifier and high speed switching applications.The TIP41C is Complement to type TIP42/42A/42B/42C.
Parametrics
TIP41C absolute maximum ratings: (1)Collector-Emitter Voltage: 100V; (2)Emitter-Base Voltage: 5 V; (3)Collector Current (DC): 6 A; (4)Collector Current (Pulse): 10 A; (5)Collector Dissipation (TC=25°C): 65 W; (6)Junction Temperature: 150°C; (7)Storage Temperature: - 65 to 150°C.
Features
TIP41C features: (1)ESD Ratings: Machine Model, C; > 400 V;Human Body Model, 3B; > 8000 V; (2)Epoxy Meets UL 94 V-0 @ 0.125 in; (3)Pb-Free Packages are Available.

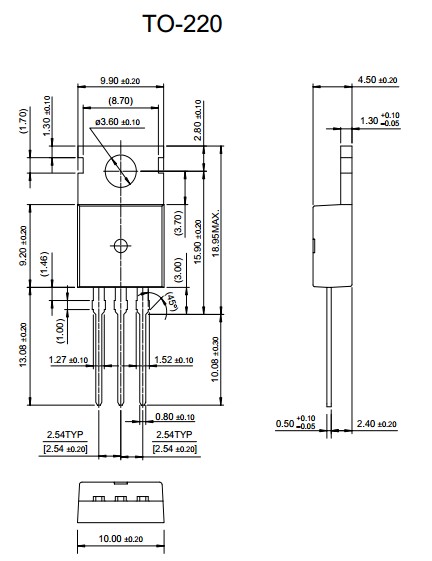

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() TIP41C |
![]() STMicroelectronics |
![]() Transistors Bipolar (BJT) NPN Gen Pur Power |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() TIP41C_F129 |
![]() Fairchild Semiconductor |
![]() Transistors Bipolar (BJT) NPN Epitaxial Sil |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() TIP41C_Q |
![]() Fairchild Semiconductor |
![]() Transistors Bipolar (BJT) |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() TIP41C-BP |
![]() Micro Commercial Components (MCC) |
![]() Transistors Bipolar (BJT) NPN 100V 6A 65W |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() TIP41CE3 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() TIP41CG |
![]() ON Semiconductor |
![]() Transistors Bipolar (BJT) 6A 100V 65W NPN |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() TIP41CN |
![]() STMicroelectronics |
![]() Transistors Bipolar (BJT) NPN 100 Volt 6 Amp |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() TIP41CPTU |
![]() Fairchild Semiconductor |
![]() Transistors Bipolar (BJT) |
![]() Data Sheet |
![]() Negotiable |
|
