Product Summary
The TIP42C is intented for use in power amplifier and switching applications. It is designed for power amplifier and high speed switching applications.The TIP42C is Complement to type TIP41C.
Parametrics
TIP42C absolute maximum ratings: (1)Collector-Emitter Voltage: 100V; (2)Emitter-Base Voltage: 5 V; (3)Collector Current (DC): 6 A; (4)Collector Current (Pulse): 10 A; (5)Collector Dissipation (TC=25°C): 65 W; (6)Junction Temperature: 150°C; (7)Storage Temperature: - 65 to 150°C.
Features
TIP42C features: (1)ESD Ratings: Machine Model, C; > 400 V;Human Body Model, 3B; > 8000 V; (2)Epoxy Meets UL 94 V-0 @ 0.125 in; (3)Pb-Free Packages are Available.

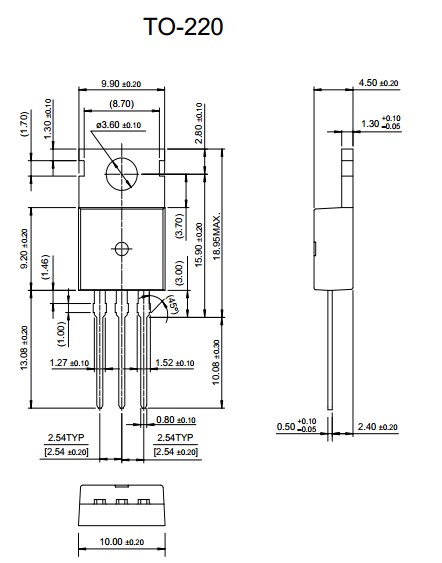

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TIP42C |
STMicroelectronics |
Transistors Bipolar (BJT) PNP Gen Pur Power |
Data Sheet |
|
|
||||||||||||
|
TIP42C-BP |
Micro Commercial Components (MCC) |
Transistors Bipolar (BJT) PNP -100V -6A 65W |
Data Sheet |
|
|
||||||||||||
 |
TIP42CE3 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TIP42CG |
ON Semiconductor |
Transistors Bipolar (BJT) 6A 100V 65W PNP |
Data Sheet |
|
|
||||||||||||
|
TIP42CN |
STMicroelectronics |
Transistors Bipolar (BJT) PNP 100 Volt 6 Amp |
Data Sheet |
Negotiable |
|
||||||||||||
|
TIP42CPTU |
Fairchild Semiconductor |
Transistors Bipolar (BJT) |
Data Sheet |
Negotiable |
|
||||||||||||
|
TIP42C-S |
Bourns |
Transistors Bipolar (BJT) 100V 6A PNP |
Data Sheet |
|
|
||||||||||||
|
TIP42CTU |
Fairchild Semiconductor |
Transistors Bipolar (BJT) PNP Epitaxial Sil |
Data Sheet |
|
|
||||||||||||
