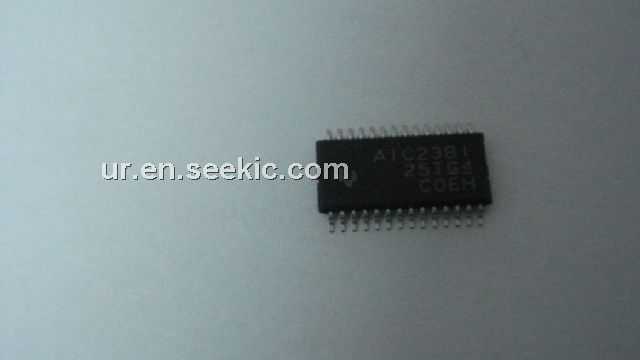

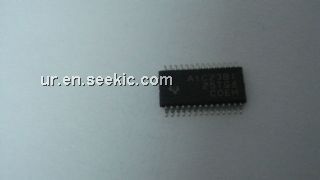

TLV320AIC23BIPWR

Product Summary

The TLV320AIC23BIPWR is a high-performance stereo audio codec with highly integrated analog functionality. The analog-to-digital converters (ADCs) and digital-to-analog converters (DACs) within the TLV320AIC23B use multibit sigma-delta technology with integrated oversampling digital interpolation filters. Data-transfer word lengths of 16, 20, 24, and 32 bits, with sample rates from 8 kHz to 96 kHz, are supported. The ADC sigma-delta modulator features third-order multibit architecture with up to 90-dBA signal-to-noise ratio (SNR) at audio sampling rates up to 96 kHz, enabling high-fidelity audio recording in a compact, power-saving design. The DAC sigma-delta modulator features a second-order multibit architecture with up to 100-dBA SNR at audio sampling rates up to 96 kHz, enabling high-quality digital audio-playback capability, while consuming less than 23 mW during playback only. The TLV320AIC23BIPWR is the ideal analog input/output (I/O) choice forportable digital audio-player and recorder applications, such as MP3 digital audio players.

Parametrics

TLV320AIC23BIPWR absolute maximum ratings: (1)Supply voltage range: -0.3 V to + 3.63 V; (2)Analog supply return to digital supply return: -0.3 V to + 3 .63 V; (3)Input voltage range, all input signals: Digital: -0.3 V to DVDD + 0.3 V; (4)Case temperature for 10 seconds:240°C; (5)Storage temperature range:-65°C to 150°C.

Features

TLV320AIC23BIPWR features: (1)High-Performance Stereo Codec; (2)Software Control Via TI McBSP-Compatible Multiprotocol Serial Port; (3)Audio-Data Input/Output Via TI McBSP-Compatible Programmable Audio Interface; (4)Integrated Total Electret-Microphone Biasing and Buffering Solution; (5)Stereo-Line Inputs; (6)ADC Multiplexed Input for Stereo-Line Inputs and Microphone; (7)Stereo-Line Outputs; (8)Volume Control With Mute on Input and Output; (9)Highly Efficient Linear Headphone Amplifier; (10)Flexible Power Management Under Total Software Contro.

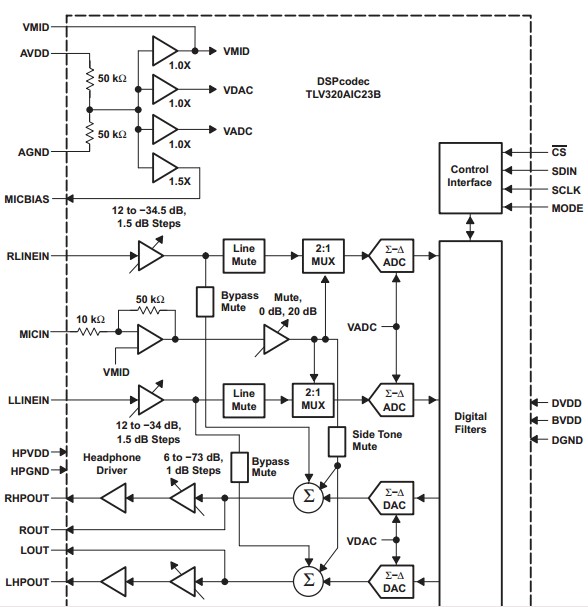

Diagrams
