Product Summary
The 2SC2246 is a Silicon Power Transistor. The applications of it are Power switching, Power amplification, power driver.
Parametrics
2SC2246 absolute maximum ratings: (1)Collector-base voltage:450V; (2)Collector-emitter voltage:400V; (3)Emitter-base voltage:5V; (4)Collector current:15A; (5)Collector current-Peak:30A; (6)Base current:6A; (7)Total power dissipation:100W; (8)Junction temperature:200℃; (9)Storage temperature:-65 to 200℃.
Features

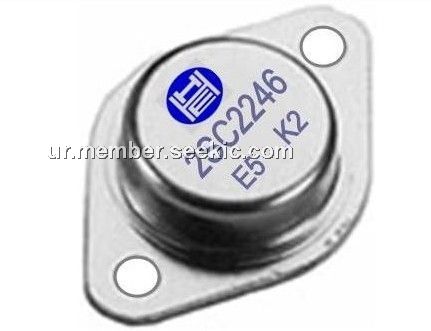

2SC2246 features: (1)High voltage, high speed; (2)With TO-3 package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC2246 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
