Product Summary

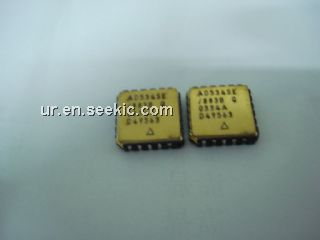

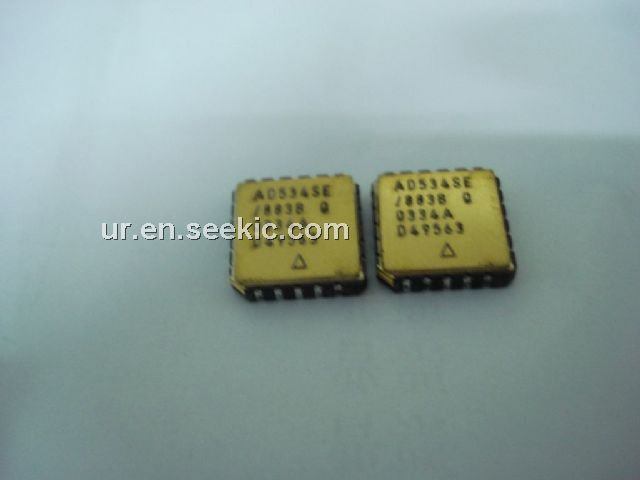

The AD534SE/883B is an internally trimmed precision IC multiplier. Its applications include High Quality Analog Signal Processing, Differential Ratio and Percentage Computations, Algebraic and Trigonometric Function Synthesis, Wideband, High-Crest rms-to-dc Conversion, Accurate Voltage Controlled Oscillators and Filters, Available in Chip Form.
Parametrics
AD534SE/883B absolute maximum ratings: (1)Supply voltage: ±22V; (2)internal power dissipation: 500mW; (3)output short-circuit to ground: indefinite; (4)rated operating temperature range: -55 to 125℃; (5)storage temperature range: -65 to 150℃; (6)lead temperature range: 300℃.
Features
AD534SE/883B features: (1)Scale-Factor Adjustable to Provide up to X100 Gain; (2)Low Noise Design: 90 mV rms, 10 Hz–10 kHz; (3)Low Cost, Monolithic Construction; (4)Excellent Long Term Stability.
Diagrams
