Product Summary

The CDCE949 is a modular PLL-based low-cost, high-performance, programmable clock synthesizer, multiplier, and divider. It generates up to 3 output clocks from a single input frequency. Each output can be programmed in-system for any clock frequency up to 230 MHz, using the integrated configurable PLL. The applications of the CDCE949 include: D-TV, STB, IP-STB, DVD-Player, DVD-Recorder, Printer and general purpose frequency sythesizing.

Parametrics

CDCE949 absoltue maximum ratings: (1)VDD Supply voltage range: –0.5 to 2.5 V; (2)VI Input voltage range: –0.5 to VDD + 0.5 V; (3)VO Output voltage range: –0.5 to VDD + 0.5 V; (4)II Input current (VI < 0, VI > VDD:) 20 mA; (5)IO Continuous output current 50 mA; (6)Tstg Storage temperature range: –65 to 150 ℃; (7)TJ Maximum junction temperature: 125 ℃.

Features

CDCE949 features: (1)Free Selectable Output Frequency up to 230 MHz; (2)Low-Noise PLL Core: PLL Loop Filter Components Integrated; Low Period Jitter (Typical 50 ps); (3)1.8-V Device Power Supply; (4)Separate Output Supply Pins: 3.3 V and 2.5 V; (5)Wide Temperature Range –40℃ to 85℃; (6)Packaged in TSSOP; (7)Development and Programming Kit for Easy PLL Design and Programming (TI Pro-Clock).

Diagrams

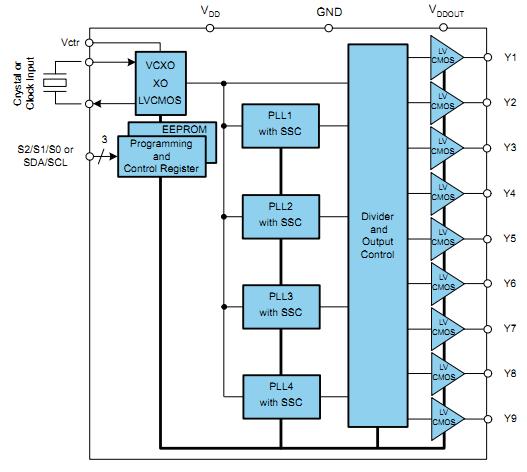

CDCE949 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

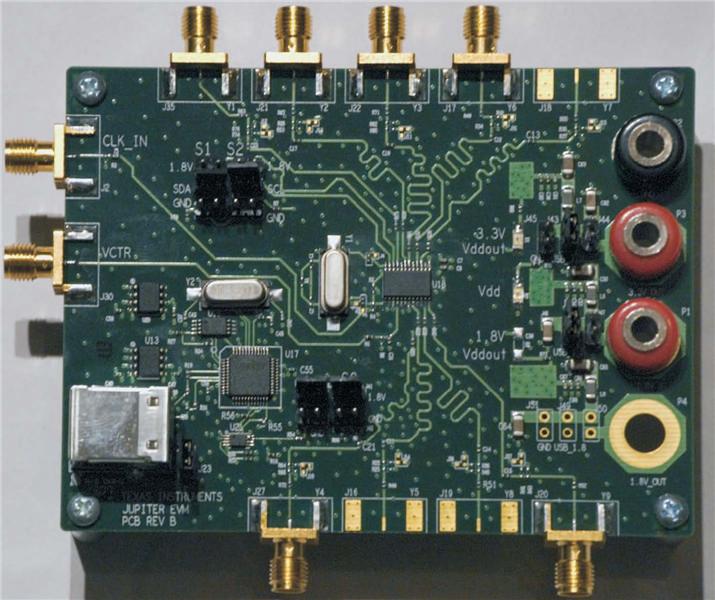

CDCE949PERF-EVM
CDCE949PERF-EVM
Texas Instruments
Clock & Timer Development Tools Perf Eval Mod
Data Sheet
0-1: $100.85
CDCE949PW
CDCE949PW
Texas Instruments
Clock Synthesizer / Jitter Cleaner Progr 4-PLL VCXO Clock Synth
Data Sheet
0-1: $3.98
1-25: $3.26
25-100: $2.94
100-250: $2.70
CDCE949PWG4
CDCE949PWG4
Texas Instruments
Clock Synthesizer / Jitter Cleaner Programmable 4-PLL VCXO Clock Synth
Data Sheet
0-1: $3.57
1-25: $2.86
25-100: $2.48
100-250: $2.11
CDCE949PWR
CDCE949PWR
Texas Instruments
Clock Synthesizer / Jitter Cleaner Progr 4-PLL VCXO Clock Synth
Data Sheet
0-1540: $1.72
1540-2000: $1.70
CDCE949PWRG4
CDCE949PWRG4
Texas Instruments
Clock Synthesizer / Jitter Cleaner Programmable 4-PLL VCXO Clock Synth
Data Sheet
0-1540: $1.72
1540-2000: $1.70
CDCE949QPWRQ1
CDCE949QPWRQ1
Texas Instruments
Clock Synthesizer / Jitter Cleaner AC Program 4-PLL VCXO Clock Synth
Data Sheet
0-1510: $2.11
1510-2000: $1.99
