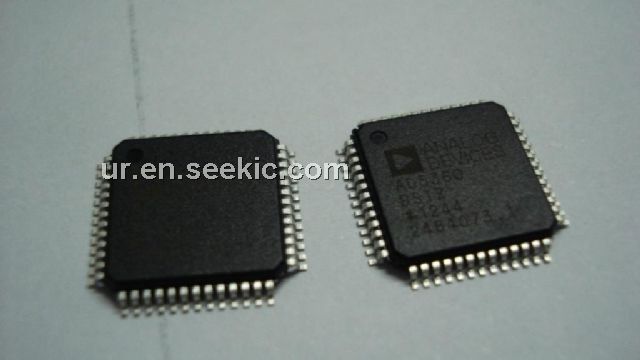

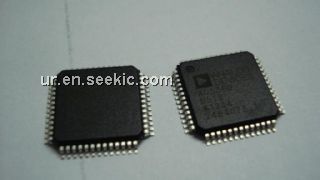

AD5360BSTZ

AD5360BSTZ, 16-Channel, 16/14-Bit, Serial Input, -0.3 V to Vcc + 0.3 V, ±1 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $48.00~48.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	48.00 / Piece

PartNumber:: AD5360BSTZ

Brand:: Analog Devices - ADI | Pack: QFP | D/C: 12+

Availability:: Supply Ability: 1000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. qi's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-09

From Other Seller

Part Number:AD5360BSTZ
US $48.00 - 48.00
Quantity:

piece

Product Summary

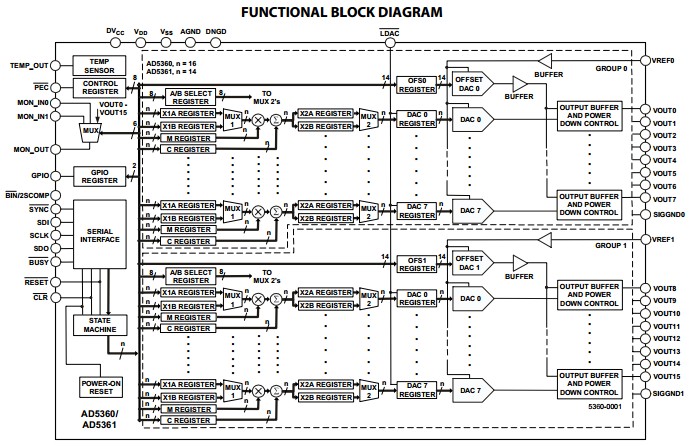

The AD5360BSTZ contains 16, 16/14-bit DACs in a single, 56-lead, LFCSP or 52-lead LQFP package. It provides buffered voltage outputs with a span 4 times the reference voltage. The gain and offset of each DAC can be independently trimmed to remove errors. For even greater flexibility, the device is divided into two groups of 8 DACs, and the output range of each group can be independently adjusted by an offset DAC. The AD5360BSTZoffers guaranteed operation over a wide supply range with VSS from -4.5 V to -16.5 V and VDD from +8 V to +16.5 V. The output amplifier headroom requirement is1.4 V operating with a load current of 1 mA.

Parametrics

AD5360BSTZ absolute maximum ratings: (1)Digital Inputs to DGND: -0.3 V to Vcc + 0.3 V; (2)Digital Outputs to DGND: -0.3 V to VCC + 0.3 V; (3)SIGGND to AGND: ±1 V; (4)AGND to DGND: -0.3 V to +0.3 V; (5)Storage Temperature Range: -65°Cto +150°C; (6)Peak Temperature: 230°C.

Features

AD5360BSTZ features: (1)16-channel DAC in 52-LQFP and 56-LFCSP; (2)Guaranteed monotonic to 16/14 bits; (3)Nominal output voltage range of -10 V to +10 V; (4)Multiple output spans available; (5)Temperature Monitoring Function; (6)Channel Monitoring Multiplexer; (7)GPIO Function; (8)System calibration function allowing user-programmable offset and gain; (9)Channel grouping and addressing features; (10)Data error checking feature; (11)SPI compatible serial interface; (12)2.5 V to 5.5 V digital interface.
