Product Summary

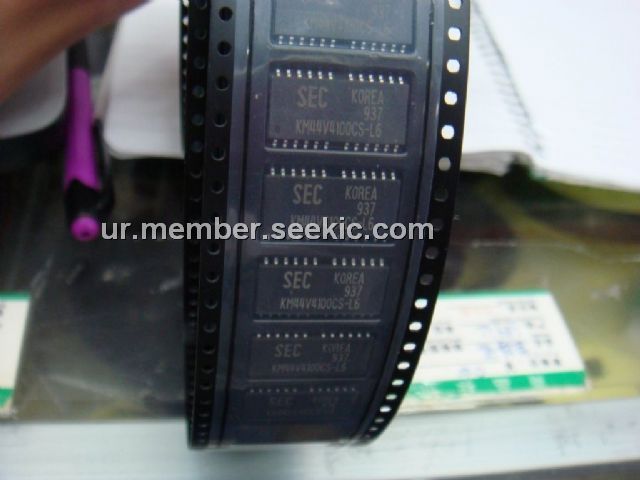

The KM44V4100CS-L6 is the 4,194,304 x 4 bit Fast Page Mode CMOS DRAM, which uses advanced CMOS process to realize high band-width, low power consumption and high reliability. It may be used as main memory for high level computer, microcomputer and personal computer.

Parametrics

KM44V4100CS-L6 absolute maximum ratings: (1)Voltage on any pin relative to VSS: -0.5 to +4.6V, -1.0 to +7.0 V; (2)Voltage on VCC supply relative to VSS: -0.5 to +4.6 V, -1.0 to +7.0 V; (3)Storage Temperature: -55 to +150℃; (4)Power Dissipation: 1 W; (5)Short Circuit Output Current: 50 mA.

Features

KM44V4100CS-L6 features: (1)Fast Page Mode operation; (2)Self-refresh capability (L-ver only); (3)Fast parallel test mode capability; (4)TTL(5V)/LVTTL(3.3V) compatible inputs and outputs; (5)Early Write or output enable controlled write; (6)JEDEC Standard pinout; (7)Available in Plastic SOJ and TSOP(II) packages; (8)Single +5V±10% power supply (5V product); (9)Single +3.3V±0.3V power supply (3.3V product).

Diagrams

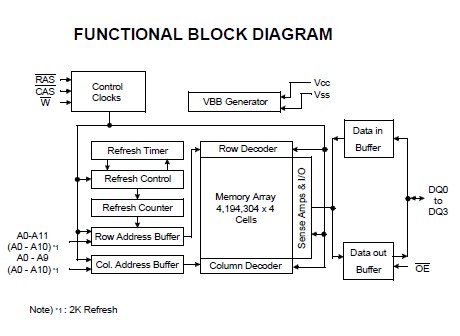

KM44V4100CS-L6 functional block diagram
