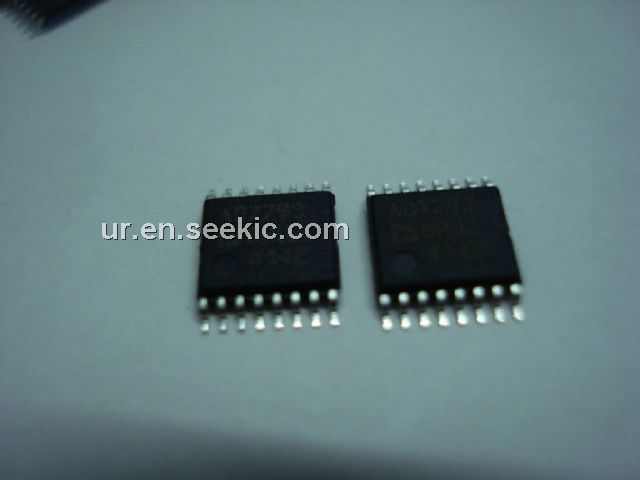

Product Summary

The AD7793BRUZ is a low power, complete analog front end for low frequency measurement applications. The AD7793BRUZ contains a low noise 16/24-bit ∑-Δ ADC with three differential analog inputs. The on-chip low noise instrumentation amplifier means that signals of small amplitude can be interfaced directly to the ADC. With a gain setting of 64, the rms noise is 80 nV when the update rate equals 16.6 Hz.

Parametrics

AD7793BRUZ absolute maximum ratings:(1)AVDD to GND: –0.3 V to +7 V ; (2)DVDD to GND: –0.3 V to +7 V ; (3)Analog Input Voltage to GND: –0.3 V to AVDD + 0.3 V ; (4)Reference Input Voltage to GND: –0.3 V to AVDD + 0.3 V ; (5)Digital Input Voltage to GND: –0.3 V to AVDD + 0.3 V ; (6)Digital Output Voltage to GND: –0.3 V to AVDD + 0.3 V; (7)AIN/Digital Input Current: 10 mA ; (8)Operating Temperature Range : –40°C to +105°C ; (9)Storage Temperature Range: –65°C to +150°C; (10)Maximum Junction Temperature: 150°C.

Features

AD7793BRUZ features: (1)Low Noise Programmable Gain Instrumentation-Amp; (2)Update Rate: 4 Hz to 500 Hz; (3)Simultaneous 50 Hz/60 Hz Rejection ; (4)Internal Clock Oscillator ; (5)Programmable Current Sources (10 μA/200 μA/1 mA) ; (6)On-Chip Bias Voltage Generator ; (7)100 nA Burnout Currents ; (8)Independent Interface Power Supply ; (9)16-Lead TSSOP Package.

Diagrams

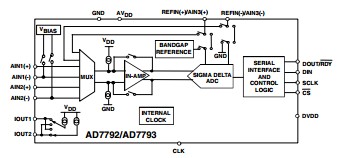

AD7793BRUZ functional block diagram
