Product Summary
The AD9754AR is a 14-bit resolution, wideband, second generation member of the TxDAC series of high performance, low power CMOS digital-to-analog-converters (DACs). The AD9754AR offers exceptional ac and dc performance while supporting update rates up to 125 MSPS.The AD9754AR is manufactured on an advanced CMOS process. A segmented current source architecture is combined with a proprietary switching technique to reduce spurious components and enhance dynamic performance.
Parametrics
AD9754AR absolute maximum ratings: (1)AVDD-ACOM:–0.3 to +6.5 V; (2)ACOM-DCOM: –0.3 to +0.3 V; (3)Digital Inputs:–0.3 DVDD to + 0.3 V; (4)ICOMP:–0.3 to AVDD + 0.3 V; (5)Junction Temperature: +150 °C; (6)Storage Temperature:–65 to +150 °C; (7)Lead Temperature(10 sec): +300 °C.
Features
AD9754AR features: (1)High Performance Member of Pin-Compatible TxDACProduct Family; (2)125 MSPS Update Rate; (3)14-Bit Resolution; (4)Excellent Spurious Free Dynamic Range Performance; (5)Differential Current Outputs: 2 mA to 20 mA; (6)On-Chip 1.20 V Reference; (7)CMOS-Compatible +2.7 V to +5.5 V Digital Interface; (8)Package: 28-Lead SOIC, TSSOP Packages; (9)Edge-Triggered Latches.

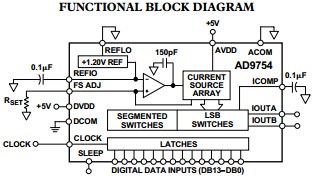

Diagrams
