Product Summary

The ADM2490EBRWZ is an isolated data transceiver with ±8kV ESD protection that is suitable for high speed, full-duplex communication on multipoint transmission lines. It is designed for balanced transmission lines and complies with ANSI TIA and ISO 8482. Its applications include isolated RS-485/RS-422 interfaces, industrial field networks, interbus, multipoint data transmission systems.

Parametrics

ADM2490EBRWZ absolute maximum ratings: (1)storage temperature range: -55 to 150℃; (2)ambient operating temperature range: -40 to 105℃; (3)VDD1: -0.5 to 7V; (4)VDD2: -0.5 to 6V; (5)bus terminal voltages: -9 to 14V; (6)logic output voltages: -0.5 to VDD1+0.5V; (7)Average output current: ±35mA; (8)ESD: ±8kV; (9)thermal impedance: 60℃/W.

Features

ADM2490EBRWZ features: (1)isolated, full-duplex RS-485/RS-422 transceiver; (2)16Mbps data rate; (3)suitable for 5V or 3V operation; (4)high common-mode transient immunity; (5)safety and regulatory approvals; (6)operating temperature range: -40 to 105℃; (7)wide body, 16-lead SOIC package.

Diagrams

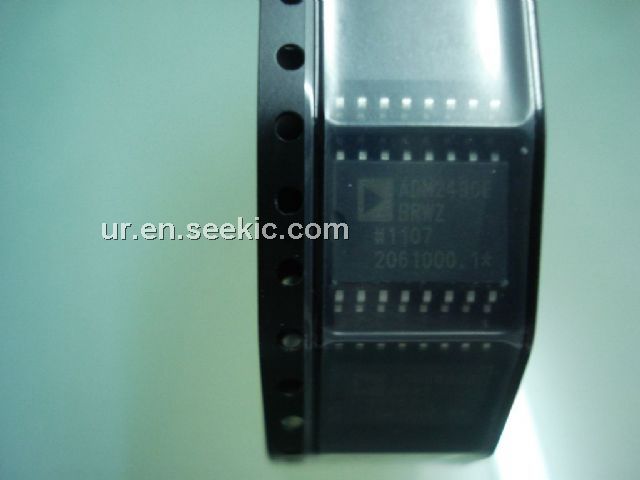

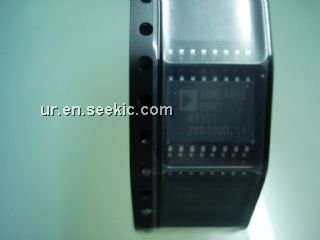

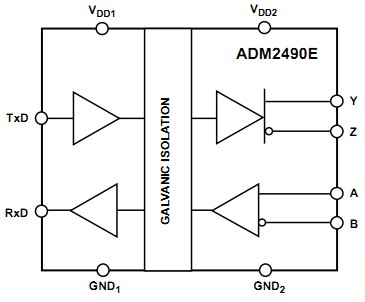

ADM2490EBRWZ diagram
