Product Summary

The AM29F400BB-55SEO is a 5V-only boot sector flash memory. It is offered in 44-pin SO and 48-pin TSOP packages. The word-wide data appears on DQ15-DQ0; the byte-wide data appears on DQ7-DQ0. The AM29F400BB-55SEO is designed to be programmed in-system with the standard system 5V VCC supply.

Parametrics

AM29F400BB-55SEO absolute maximum ratings: (1)storage temperature plastic packages: -65 to 150℃; (2)ambient temperature with power applied: -55 to 125℃; (3)voltage with respect to ground: -2 to 7V; (4)output short circuit current: 200mA.

Features

AM29F400BB-55SEO features: (1)single power supply operation; (2)manufactured on 0.35μm process technology; (3)top or bottom boot block configuration available; (4)embedded algorithms; (5)low power consumption; (6)flexible sector architecture; (7)compatibility with JEDEC standards.

Diagrams

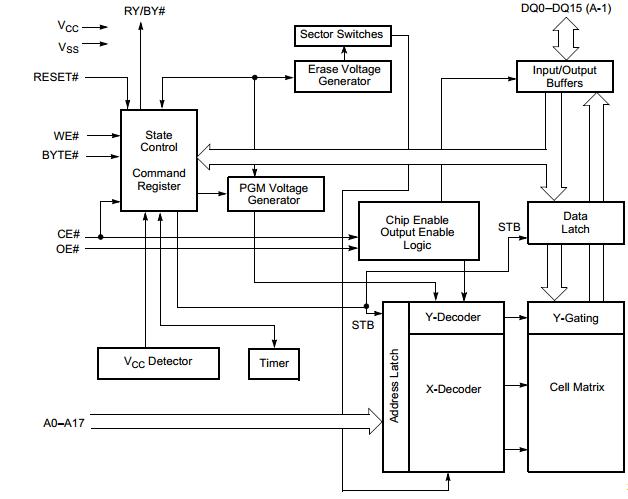

AM29F400BB-55SEO block diagram
